Concentrations of CB188 relative to assessment criteria

Figure Created 17 Aug 2022 Published 21 Aug 2022 Last modified 15 Feb 2024
2 min read
This is an old version, kept for reference only.

Go to latest version
This page was archived on 15 Feb 2024 with reason: Other (New version data-and-maps/figures/concentrations-of-cb188-relative-to-1 was published)

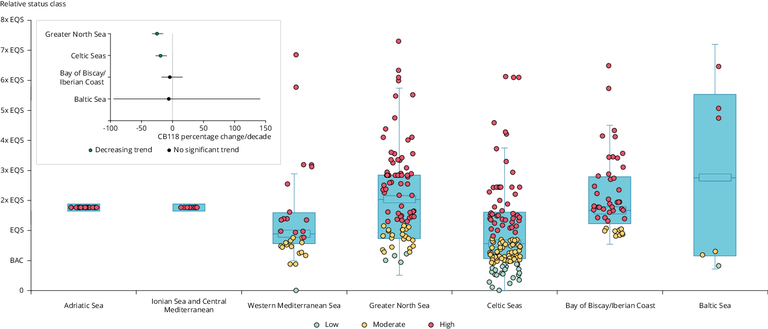

The figure shows concentrations of CB188 relative to the assessment criteria BAC (Backgound Assessment Concentration) and EQS (Environmental Quality Standard as given in the Water Framework Directive). For instance, a point at '4x EQS' indicates a site where the observed concentration was four (4) times the EQS limit. The points have been spread in the x direction in order to avoid too much overlap.

European data


Additional information

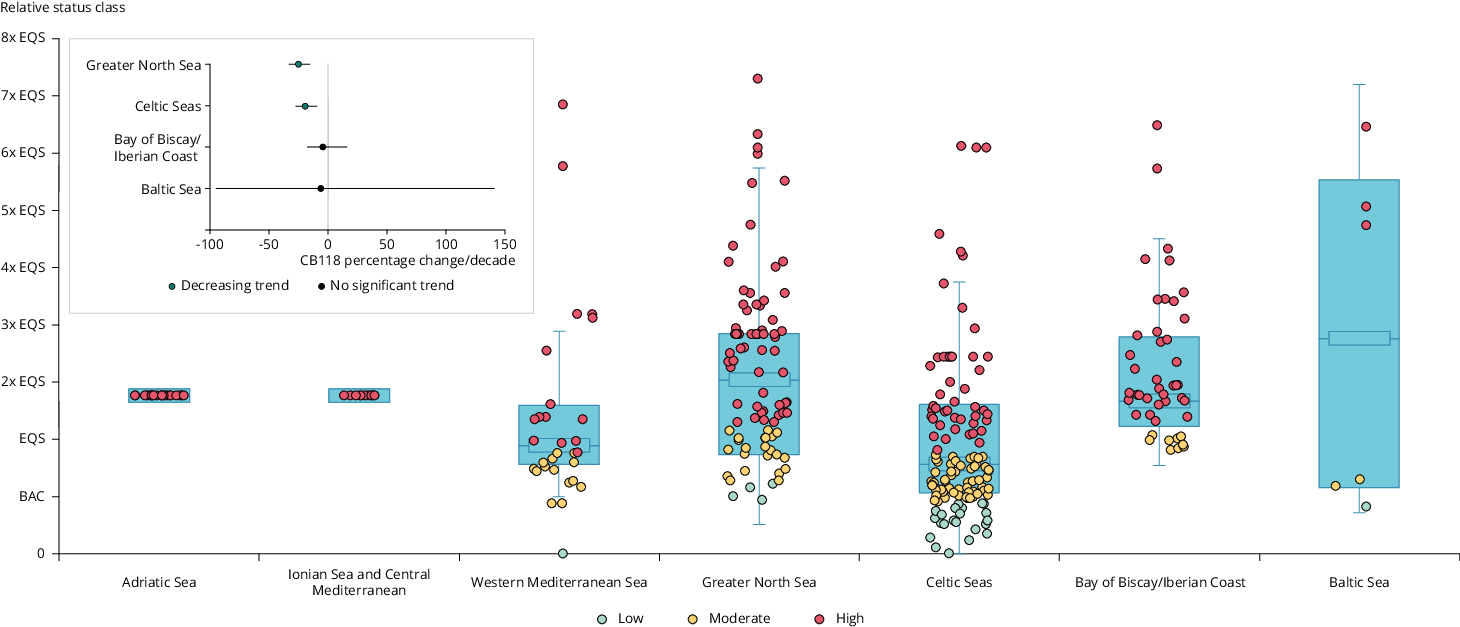

Concentrations of CB-118 in mussels and oysters are relative to environmental thresholds (3). Each point represents a location (station). The green points under the yellow line are locations with concentrations under BAC; the yellow points are over BAC but under EQS (Environmental Quality Standard), while the red points are locations with concentrations over EQS. The inset (upper left) shows time trends (change per decade) by the MSFD region over the most recently available 10-year period (meta-analysis of trends for each location). Significant decreases are shown in green, while insignificant time trends are shown in black. Regions not included in the time trend graph did not have enough data to enable trend analysis.

Geographical coverage
- Belgium, France, Germany, Ireland, Italy, Norway, Poland, Spain, Sweden, Netherlands, United Kingdom.
- Adriatic Sea, Ionian Sea and Central Mediterranean Sea, Western Mediterranean Sea, Greater North Sea, Celtic Seas, Bay of Biscay/Iberian Coast, Baltic Sea.
