Indicator Assessment

Exposure of ecosystems to acidification, eutrophication and ozone

Indicator Assessment
Prod-ID: IND-30-en
  Also known as: CSI 005
Publié 30/05/2012 Dernière modification 11/05/2021
38 min read
Photo: © Karol M @Wikimedia
This page was archived on 02/03/2015 with reason: Other (New version data-and-maps/indicators/exposure-of-ecosystems-to-acidification-3/assessment was published)

Eutrophication
The magnitude of the risk of ecosystem eutrophication and its geographical coverage has diminished only slightly over the years. The predictions for 2010 and 2020 indicate that the risk is still widespread over Europe. This is in conflict with the EU's long-term objective of not exceeding critical loads of airborne acidifying and eutrophying substances in sensitive ecosystem areas (National Emission Ceilings Directive, 6th Environmental Action Programme, Thematic Strategy on Air Pollution).

Acidification
The situation has considerably improved and it is predicted to improve further. The interim environmental objective for 2010 (National Emission Ceilings Directive) will most likely not be met completely. However, the European ecosystem areas where the critical load will be exceeded is predicted to have declined by more than 80 % in 2010 with 1990 as a base year. By 2020, it is expected that the risk of ecosystem acidification will only be an issue at some hot spots, in particular at the border area between the Netherlands and Germany.

Ozone (O3)
Most vegetation and agricultural crops are exposed to ozone levels exceeding the long-term objective given in the EU Air Quality Directive. A significant fraction is also exposed to levels above the 2010 target value defined in the Directive. Concentrations in 2008 were on the average higher than in 2007. The effect-related accumulated concentrations, addressing exposure of crops to ozone over several summer months, shows large year-to-year variations, there is a non-significance tendency to increase.



This indicator is discontinued. No more assessments will be produced.

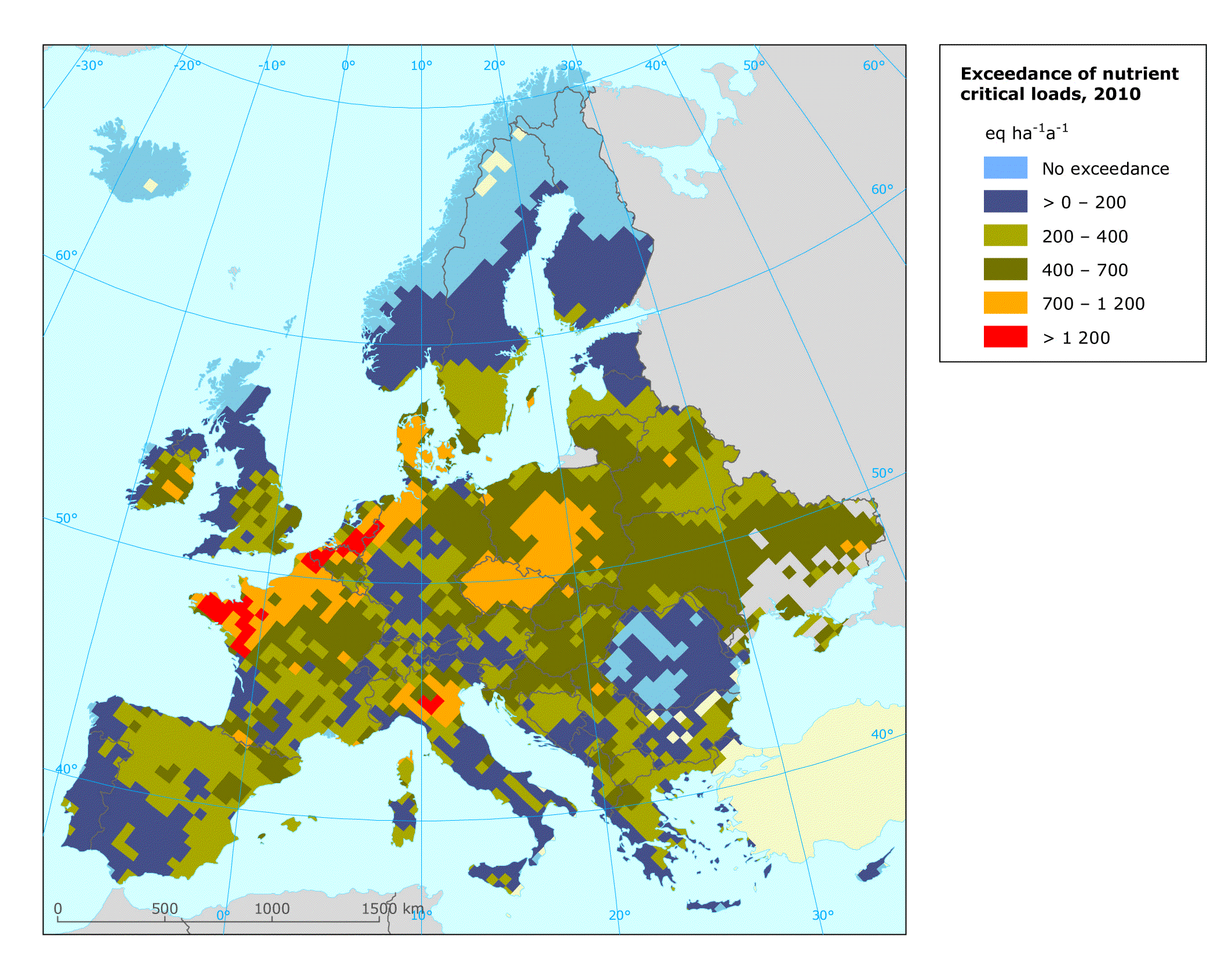

Exceedance of critical loads for eutrophication due to the deposition of nutrient nitrogen in 2000

Note: The results were computed using the 2008 Critical Loads database hosted by the Coordination Centre for Effects (CCE).

Exceedance of critical loads for eutrophication due to the deposition of nutrient nitrogen in 2010

Note: The results were computed using the 2008 Critical Loads database hosted by the Coordination Centre for Effects (CCE).

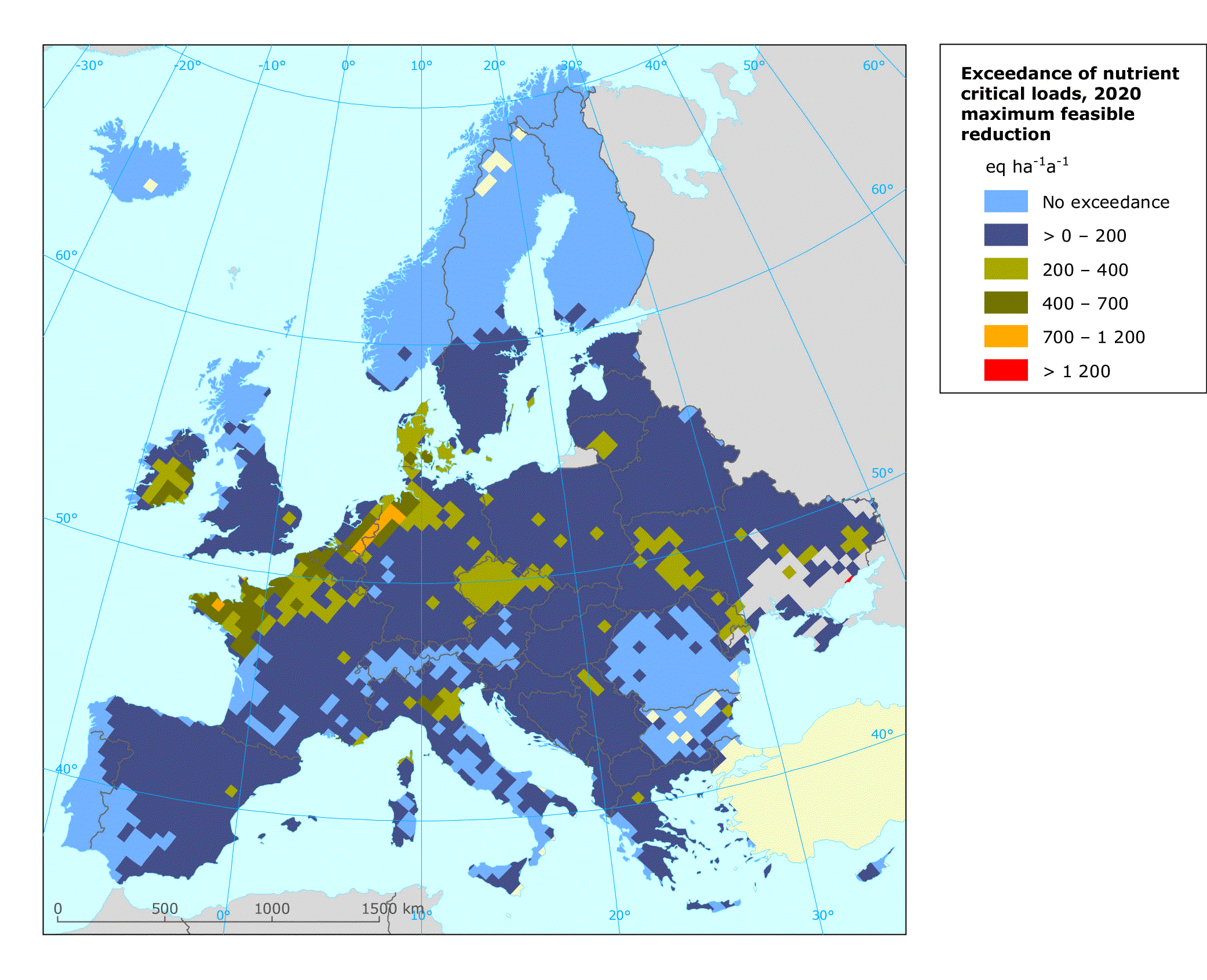

Exceedance of critical loads for eutrophication due to the deposition of nutrient nitrogen in 2020 under current legislation to reduce national emissions

Note: The results were computed using the 2008 Critical Loads database hosted by the Coordination Centre for Effects (CCE).

Exceedance of critical loads for eutrophication due to the deposition of nutrient nitrogen in 2020 assuming a maximum feasible reductions scenario

Note: The results were computed using the 2008 Critical Loads database hosted by the Coordination Centre for Effects (CCE).

Exceedance of critical loads for acidification by deposition of nitrogen and sulphur compounds in 2000

Note: The results were computed using the 2008 Critical Loads database hosted by the Coordination Centre for Effects (CCE).

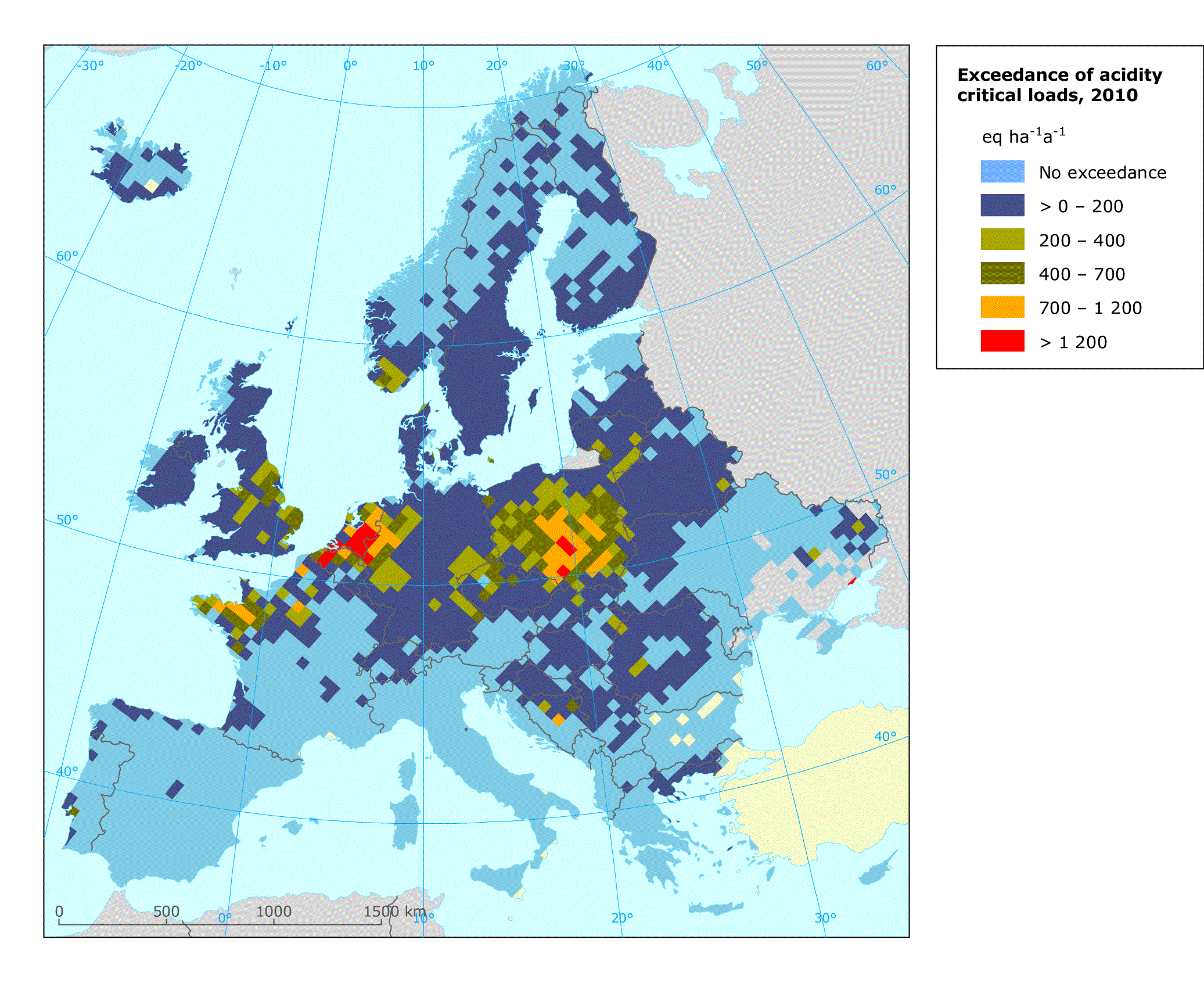

Exceedance of critical loads for acidification by deposition of nitrogen and sulphur compounds in 2010

Note: The results were computed using the 2008 Critical Loads database hosted by the Coordination Centre for Effects (CCE).

Exceedance of critical loads for acidification by deposition of nitrogen and sulphur compounds in 2020 under Current Legislation to reduce national emissions

Note: The results were computed using the 2008 Critical Loads database hosted by the Coordination Centre for Effects (CCE).

Exceedance of critical loads for acidification by deposition of nitrogen and sulphur compounds in 2020 assuming a Maximum Feasible Reductions scenario

Note: The results were computed using the 2008 Critical Loads database hosted by the Coordination Centre for Effects (CCE).

Exposure of agricultural area to ozone (exposure expressed as AOT40 in (μg/m³).h) in EEA member countries

Note: In the Air Quality Directive (2008/50/EC) the target value for protection of vegetation is set to 18 000 (μg/m³).h while the long-term objective is set to 6 000 (μg/m³).h. Due to lack of detailed land cover data and/or rural ozone data Iceland and Norway are not included until 2006 and onwards. Switzerland have not been included in the analysis for the entire period 1996-2007 due to the same reasons. Turkey is not included in the analysis 1996-2008.

Data source:

Rural concentration map of the ozone indicator AOT40 for crops, year 2008

Note: AOT40 for crops are vegatation exposure related indicators and are based on rural background station observation only.

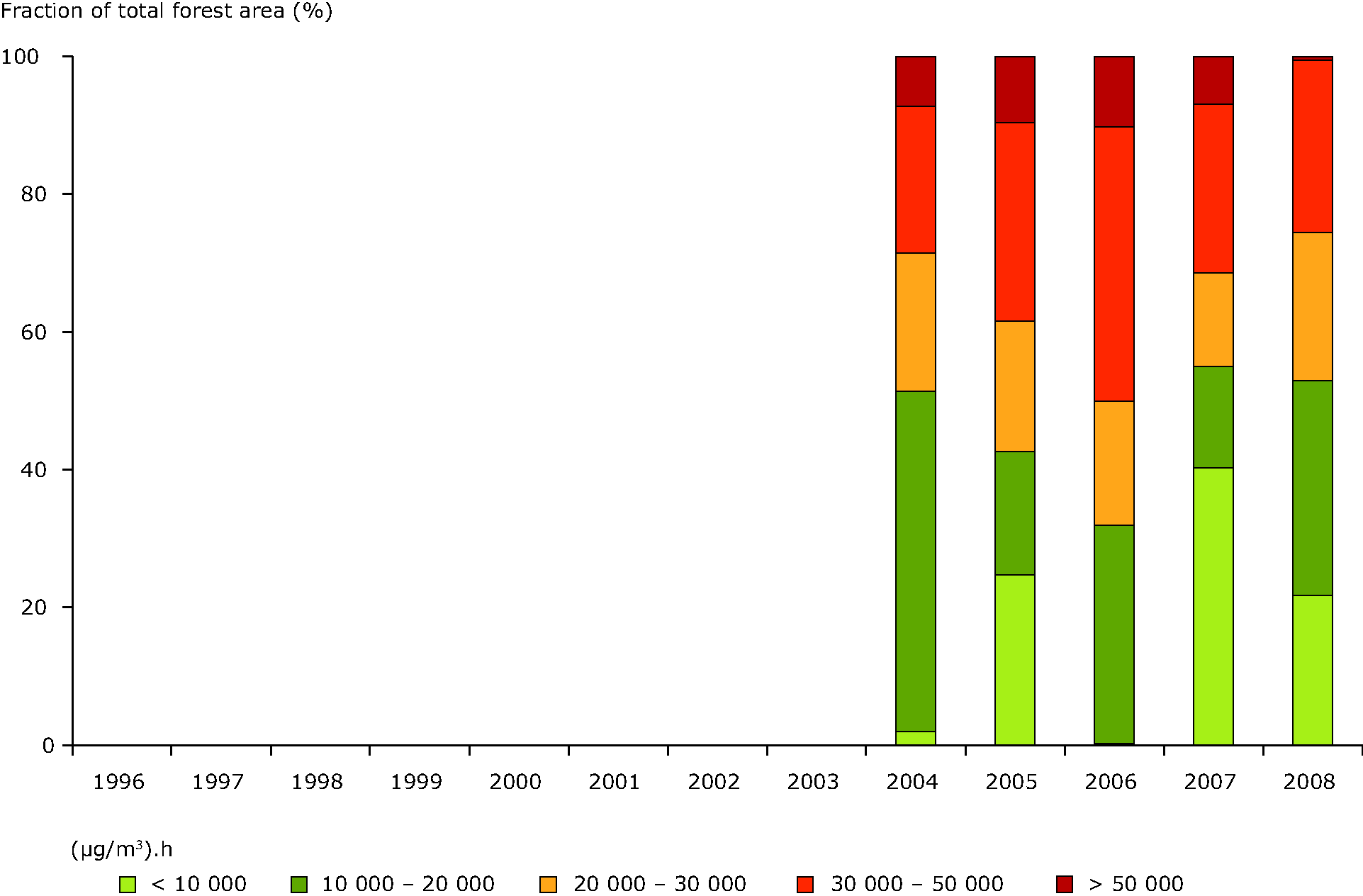

Exposure of forest area to ozone (exposure expressed as AOT40 in (μg/m³).h) in EEA member countries

Note: UNECE has set a critical level for protection of forest to 10 000 (μg/m3).h. Since 2004 a growing number of EEA member countries have been included. In 2004 Bulgaria, Greece, Iceland, Norway, Romania, Switzerland, and Turkey have not been included. In 2005-2006 Iceland, Norway Switzerland and Turkey are still excluded in the analyses due to lack of detailed land cover data and/or rural ozone data. In 2007 Switzerland and Turkey are not included. Since 2008 only Turkey is not included. Calculations of forest exposure are not available for year prior to 2004.

Data source:

Rural concentration map of the ozone indicator AOT40 for forest in 2008

Note: The gradient of the AOT40f values is similar to those of the AOT40c for crops: relative low in northern Europe, and the highest values observed in the countries around the Mediterranean. The critical level is met in north Scandinavia, Ireland, part of the UK and in the coastal regions of the Netherlands (total forested area with concentrations below the critical level is 22 % of a total area of 1.44 million km2). In south Europe levels may be as high as 4-5 times above the critical level.

Critical loads for nutrient nitrogen
The EU has a long-term objective of not exceeding critical loads for nutrient nitrogen. Excess inputs of nitrogen to sensitive ecosystems may cause eutrophication and nutrient imbalances. The critical load of nutrient nitrogen is defined as the highest atmospheric deposition of nitrogen compounds below which harmful effects in ecosystem structure and function do not occur, according to present knowledge. In 2000 rather large areas show high exceedances of critical loads for nutrient nitrogen, especially in the western part of Europe, following the coastal regions from north-western France to Denmark. In southern Europe high exceedances are only found in northern Italy.

The predictions for 2010 and 2020 indicate that the risk of exceedances is high irrespective of whether we assume that the current policies and measures to reduce eutrophying nitrogen emissions will be fully implemented (the current legislation CLE scenario) or that all technically and economically feasible additional policies are applied (the maximum feasible reduction MFR scenario).

More specifically, the area with exceedances above 1200 eq ha-1a-1 in 2010 hardly changes under the CLE scenario in 2020, while exceedances in this highest range do not occur according to the MFR scenario (see Figure 4). However, in the latter case still broad areas in Europe remain at risk of eutrophication and negative changes in nutrient balances. In these areas exceedances that range from 200 to 1 200 eq ha-1a-1 are predicted (see the border area between the Netherlands and Germany, in particular).

Critical loads for acidification
The EU has a long-term objective of not exceeding critical loads for acidity in order to protect Europe's ecosystems from acidification. The critical load of sulphur and nitrogen acidity is defined as the highest deposition of acidifying compounds that will not cause chemical changes leading to long-term harmful effects on ecosystem structure and function.

In addition to the long-term objective, the EU has a 2010 interim environmental objective to reduce areas where critical loads are exceeded by at least 50 % in each grid cell for which critical loads exceedances are computed, compared with the 1990 situation. The exceedances of critical loads for acidification caused by the deposition of air pollutants in 1990, 2000, 2010 (current legislation scenario; CLE) and 2020 (CLE as well as maximum feasible reduction scenarios, MFR) were calculated. 84 % of the grid cells with critical loads exceedances in 1990 show a decline in exceeded area of more than 50 % by 2010. Though the interim environmental objective has strictly speaking not been met, the improvements are considerable.

Figures 5-8 show that in 2000 large areas with exceedances (i.e. higher than 1 200 eq ha-1a-1, shaded red) are mostly located in Belgium, Germany, the Netherlands and Poland. For the CLE scenario, the size of the area where critical loads are exceeded is considerably reduced in 2020. The MFR scenario shows that many areas in Europe will no longer be at risk of acidification in 2020 if all technically and economically feasible additional policies are also implemented. Nevertheless, high exceedance peaks between 700 and 1 200 eq ha-1a-1 would still be expected for ecosystems in the Netherlands.


Target values for ozone

The EU has the objective of protecting vegetation from high ozone concentrations accumulated over the growing season (defined as the summer months May to July). The target value for 2010 is 18 000 (μg/m3).hour. The long term objective is 6 000 (μg/m3).hour.

There is a substantial fraction of the agricultural area in EEA-32 member countries (excluding Turkey (see footnote [1]) where the target value is exceeded (in 2008, about 35 % of a total area of 2052 million km2). Exceedances of the target values have notably been observed in southern, central and eastern Europe (see Figure 9 and 10 - see footnote [2]). The long-term objective is met in 5 % of the total agricultural area, mainly in Ireland and Scandinavia. In 2003 the meteorological conditions were very favorable for ozone formation resulting in exceptional high concentrations. Year 2004 was a less exceptional year and substantial lower ozone levels, similar to the levels in 2001-2002, have been observed. In 2005 ozone concentrations were higher than in 2004 but the high levels of 2003 were not observed. The average ozone concentrations in 2006 are only slightly higher than in 2005. However, June and July 2006 were characterized by a large number of ozone episodes resulting in much higher AOT40 value compared to 2005. In 2007 the levels are lower again, similar to the situation in 2004. In 2008 ozone the levels showed a general increase.

There is great concern that the 2010 target will not be met. Also, it is expected that exposure of vegetation to ozone concentrations in the next decade will remain well above the long-term objective despite emission reductions of ozone precursor pollutants through EU legislation and UNECE protocols.

In addition to the EU target value, within the UNECE Convention on Long-range Transboundary Air Pollution a critical level has been defined for the protection of forest. This critical level related to the accumulated sum during the full summer (April-September) and is set to 10 000 (μg/m3).h. Figure 11 and 12 shows this AOT40 for forest (AOT40f). The gradient of the AOT40f values is similar to those of the AOT40c for crops: relative low in northern Europe, and the highest values observed in the countries around the Mediterranean. The critical level is met in north Scandinavia, Ireland, part of the UK and in the coastal regions of the Netherlands (total forested area with concentrations below the critical level is 22 % of a total area of 1.44 million km2). In south Europe levels may be as high as 4-5 times above the critical level (see Figure 11).

Figure 12 summarizes the exposure of forested areas; during the last five years large variations are observed. While in 2004 and 2006 almost all forest has been exposed to levels exceeding the critical level, in 2007 40 % was exposed to lower levels. Similar to the AOT40 for crops (see below) no clear up- or downward trend could be detected.

([1]) Until 2006 Iceland, Norway Switzerland and Turkey have not been included in the analysis due to lack of detailed land cover data and/or rural ozone data, in 2007 Switzerland and Turkey are not included and since 2008 only Turkey is not included.

([2]) ETC/ACC Technical Paper 2010/10. European air quality maps of ozone and PM10 for 2008 and their uncertainty analysis.

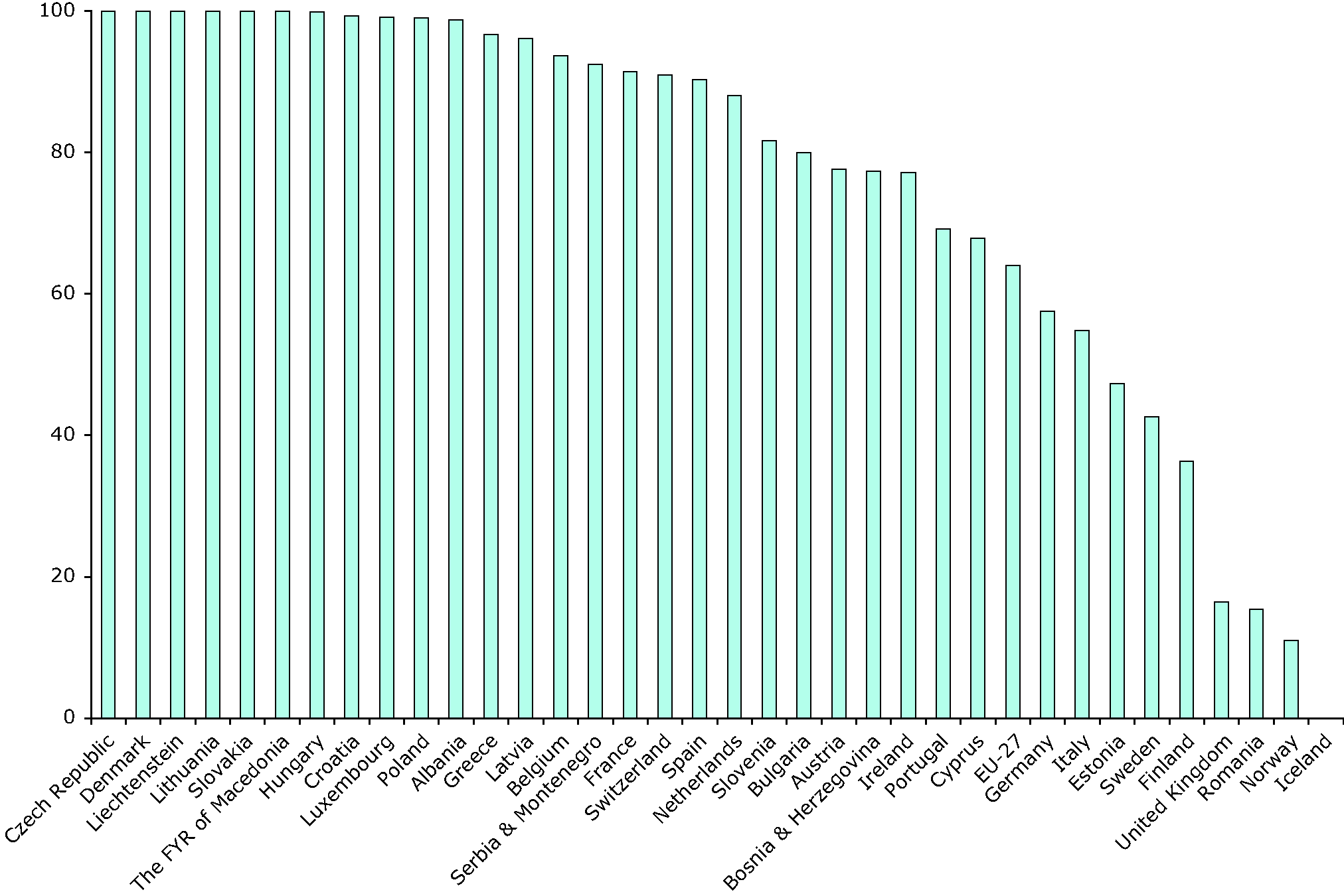

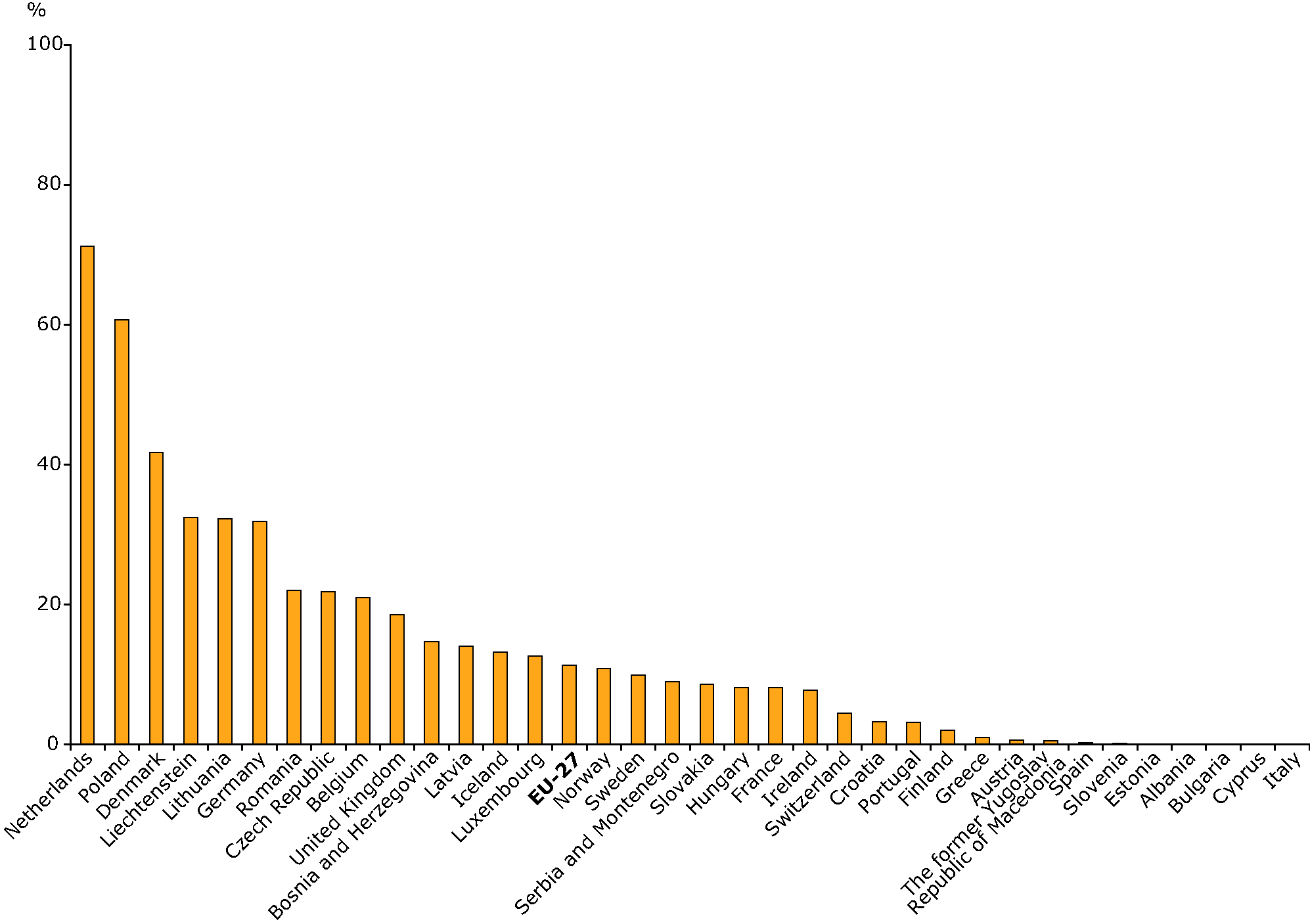

Percentage of ecosystem area at risk of eutrophication for EEA Member Countries and EEA Cooperating Countries in 2010 for a current legislation (CLE) scenario

Note: The results were computed using the 2008 Critical Loads database. Deposition data was made available by the LRTAP Convention EMEP Centre for Integrated Assessment Modelling (CIAM) at the International Institute for Applied Systems Analysis (IIASA) in autumn 2007.

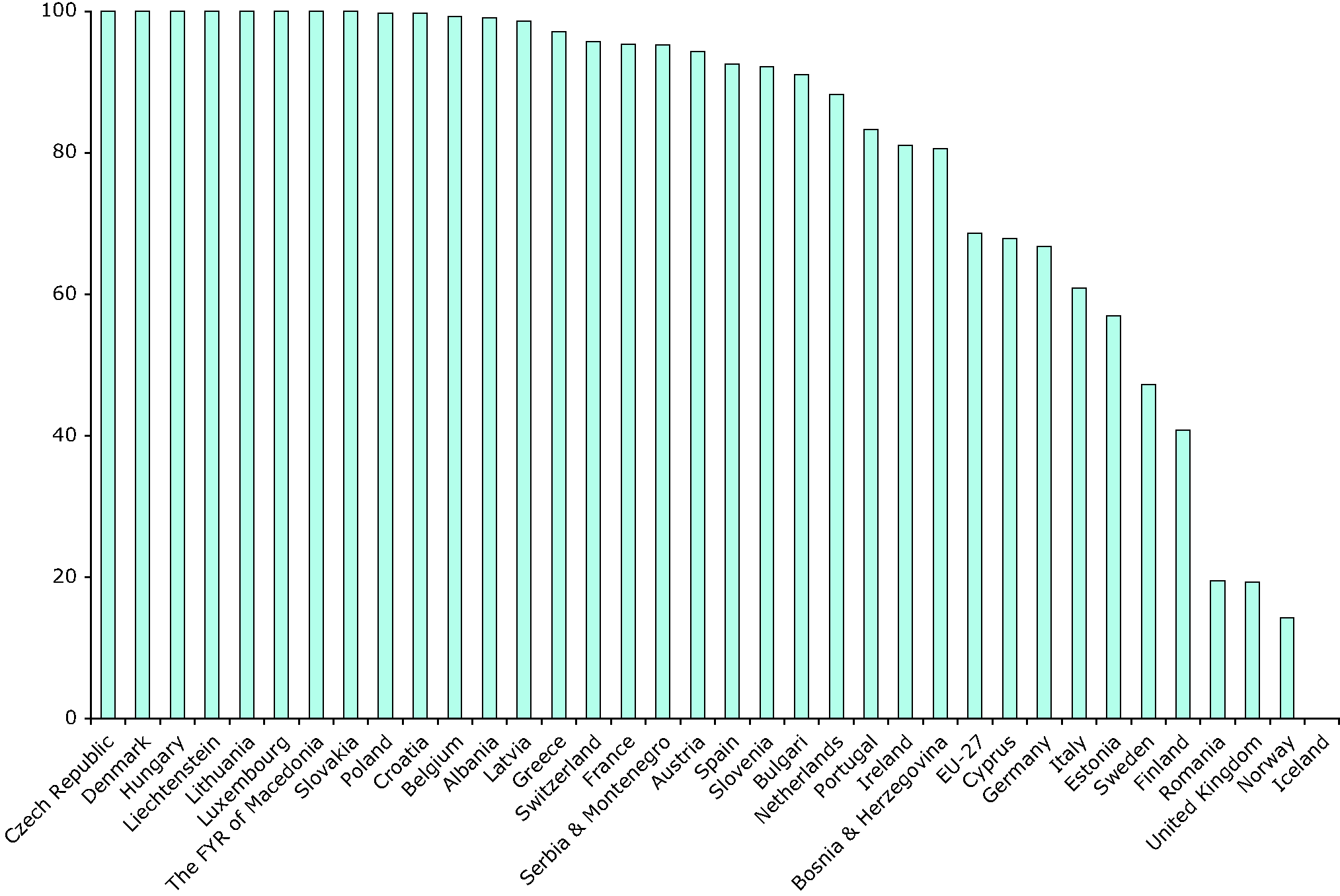

Percentage of ecosystem area at risk of eutrophication for EEA Member Countries and EEA Cooperating Countries in 2020 for a CLE scenario

Note: The results were computed using the 2008 Critical Loads database. Deposition data was made available by the LRTAP Convention EMEP Centre for Integrated Assessment Modelling (CIAM) at the International Institute for Applied Systems Analysis (IIASA) in autumn 2007.

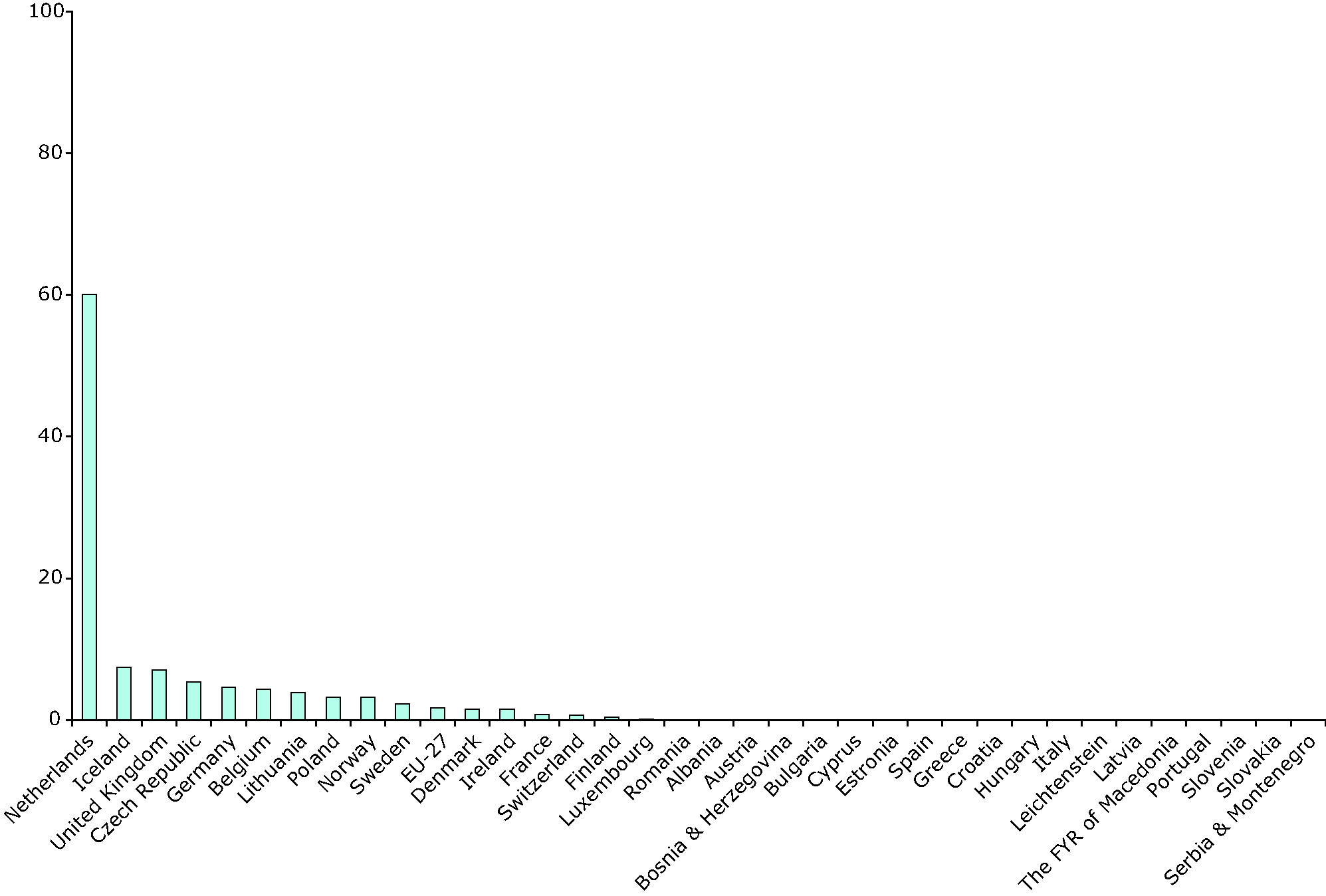

Percentage of ecosystem area at risk of eutrophication for EEA Member Countries and EEA Cooperating Countries in 2020 for a maximum feasible reduction (MFR) scenario

Note: The results were computed using the 2008 Critical Loads database. Deposition data was made available by the LRTAP Convention EMEP Centre for Integrated Assessment Modelling (CIAM) at the International Institute for Applied Systems Analysis (IIASA) in autumn 2007.

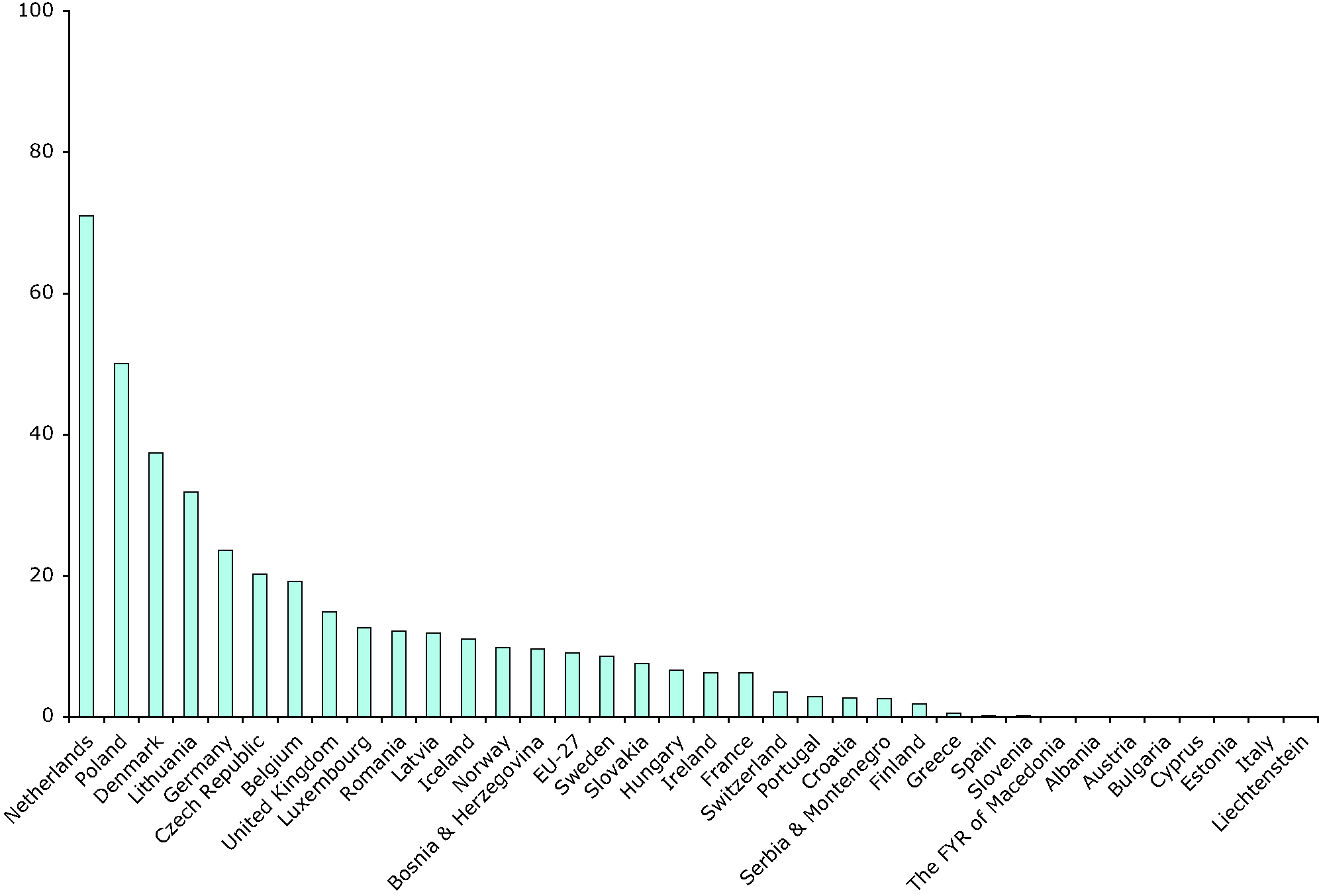

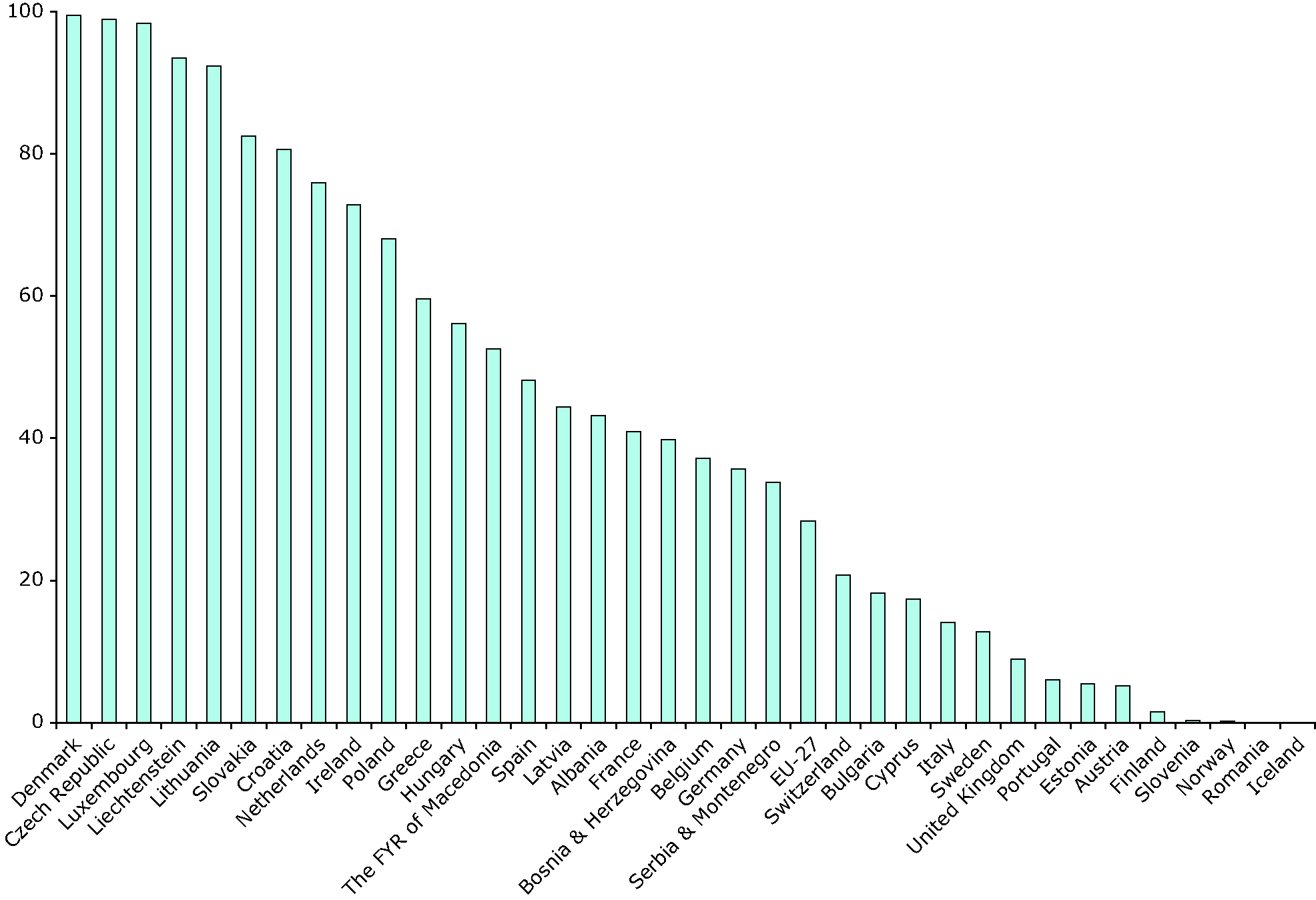

Percentage of ecosystem area at risk of acidification for EEA Member Countries and EEA Cooperating Countries in 2010 for a current legislation (CLE) scenario

Note: The results were computed using the 2008 Critical Loads database. Deposition data was made available by the LRTAP Convention EMEP Centre for Integrated Assessment Modelling (CIAM) at the International Institute for Applied Systems Analysis (IIASA) in autumn 2007.

Percentage of ecosystem area at risk of acidification for EEA Member Countries and EEA Cooperating Countries in 2020 for a CLE scenario

Note: The results were computed using the 2008 Critical Loads database. Deposition data was made available by the LRTAP Convention EMEP Centre for Integrated Assessment Modelling (CIAM) at the International Institute for Applied Systems Analysis (IIASA) in autumn 2007.

Percentage of ecosystem area at risk of acidification for EEA Member Countries and EEA Cooperating Countries in 2020 for a maximum feasible reduction (MFR) scenario

Note: The results were computed using the 2008 Critical Loads database. Deposition data was made available by the LRTAP Convention EMEP Centre for Integrated Assessment Modelling (CIAM) at the International Institute for Applied Systems Analysis (IIASA) in autumn 2007.

Percentage of natural ecosystem area at risk of acidification (left) and of eutrophication for the 32 EEA member countries and EEA cooperating countries in 2000 and for two emission scenarios: current legislation (CLE) in 2010 and 2020, maximum feasible r

Note: Hettelingh J-P, Posch M, Slootweg J (eds.) (2008) Critical load, dynamic modelling and impact assessment in Europa: CCE Status Report 2008, Netherlands Environmental Assessment Agency.

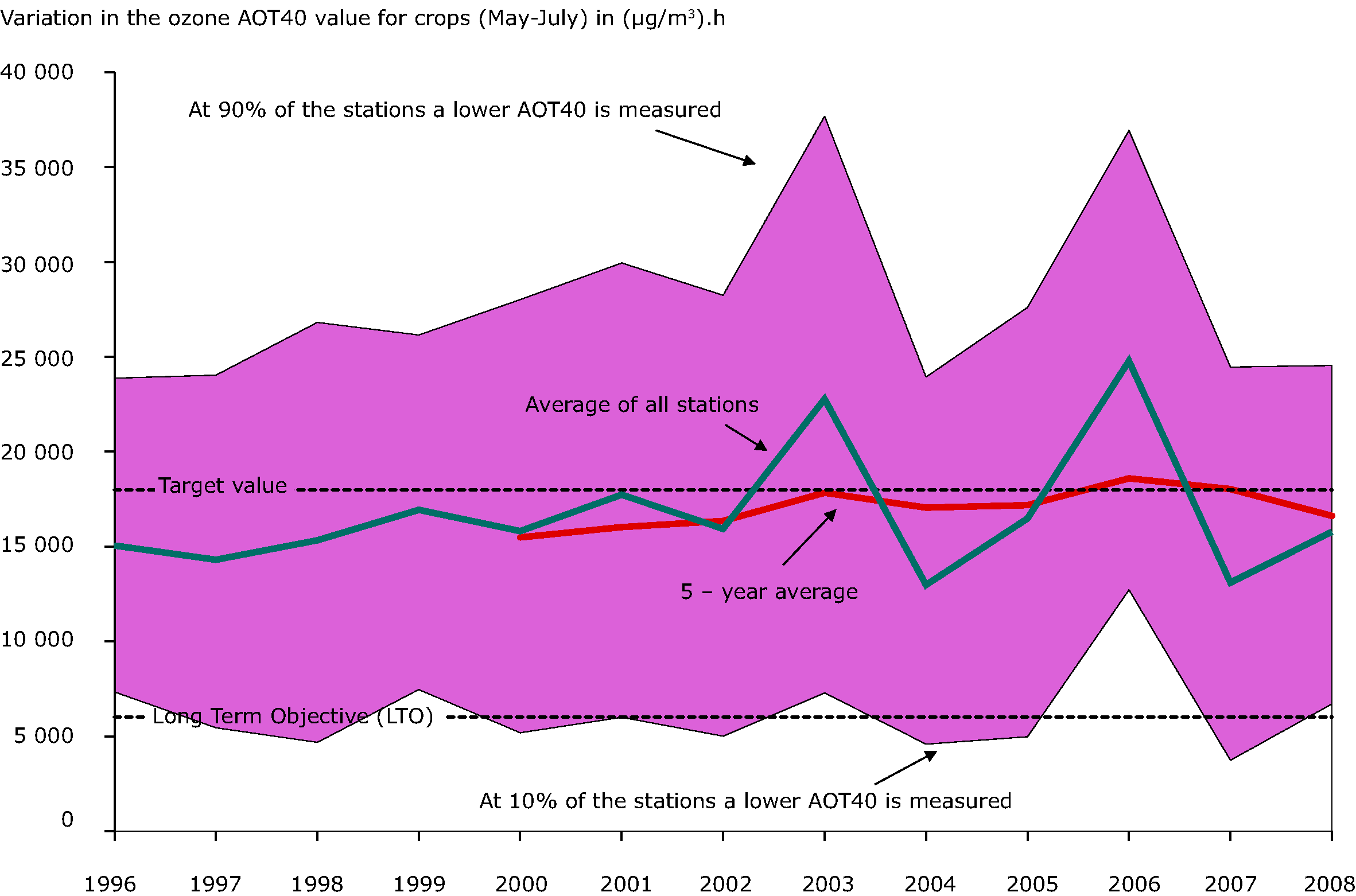

Annual variation in the ozone AOT40 value for crops (May-July) in (μg/m³).h, 1996-2008

Note: Average values over all rural stations which reported data over at least nine years in the period 1996-2008. The red line corresponds to the 5-year averaged value. Variations over Europe in observed values is large, eighty percent of the observations falls with the red shaded area.

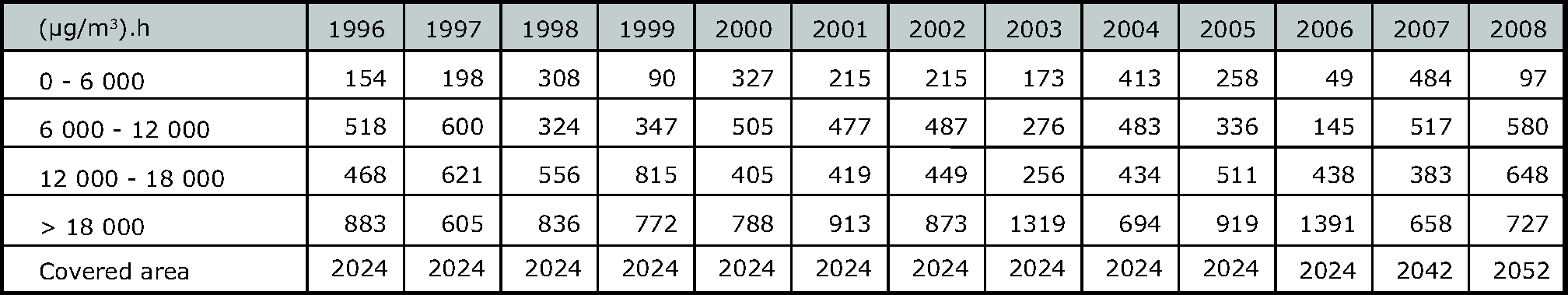

Agricultural area (in 1 000 km²) in EEA member countries for each exposure class
