Figure

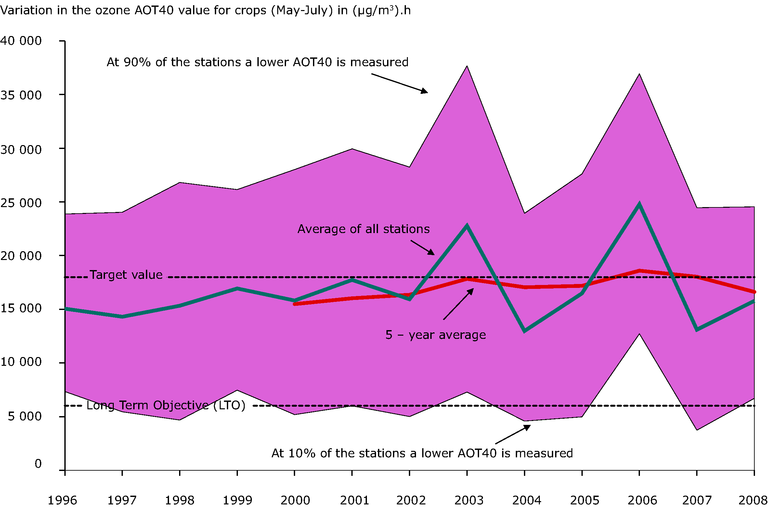

Annual variation in the ozone AOT40 value for crops (May-July) in (μg/m³).h, 1996-2008

Figure Created 17 Oct 2011 Published 20 Aug 2012 Last modified 26 Aug 2017

1 min read

This is an old version, kept for reference only.

Go to latest version

Topics: Air pollution

This page was archived on 26 Aug 2017 with reason: A new version has been published

Average values over all rural stations which reported data over at least nine years in the period 1996-2008. The red line corresponds to the 5-year averaged value. Variations over Europe in observed values is large, eighty percent of the observations falls with the red shaded area.

https://www.eea.europa.eu/data-and-maps/figures/annual-variation-in-the-ozone-aot40-value-may-july-1/csi005_assessmentv2_fig18/image_large

Download

Original file application/postscript (608.52 KB)

European data

Microsoft Excel (Office 2010)
65.35 KB

CSI-005_AssessmentV3_Figure18.xlsx

Metadata

Units:: (μg/m³).h
Rights:: EEA standard re-use policy: unless otherwise indicated, re-use of content on the EEA website for commercial or non-commercial purposes is permitted free of charge, provided that the source is acknowledged (https://www.eea.europa.eu/legal/copyright). Copyright holder: European Environment Agency (EEA).
Owners:: European Environment Agency (EEA)
Figure type:: Graph

Additional information

AOT40 (crops)

(Accumulated dose of ozone Over a Threshold of 40 ppb)
AOT40 means the sum of the differences between hourly concentrations greater than 80 µg/m³ (= 40 parts per billion) and 80 µg/m³

Permalinks

Permalink to this version: a24ccff00a88514c26cade05d8fb3b7f
Permalink to latest version: 3B3C528F-09FE-4EB6-A5C8-895C1E8B0C8C

Older versions

11 Oct 2010 - Annual variation in the ozone AOT40 value (May-July) in (μg/m³).h, 1996-2007

12 Nov 2009 - Annual variation in the ozone AOT40 value (May-July), 1996-2006

Geographic coverage

Albania Austria Belgium Bosnia and Herzegovina Bulgaria Croatia Cyprus Czechia Denmark Estonia Finland France Germany Greece Hungary Iceland Ireland Italy Latvia Liechtenstein Lithuania Luxembourg Malta Montenegro Netherlands North Macedonia Norway Poland Portugal Romania Serbia Slovakia Slovenia Spain Sweden Switzerland United Kingdom
