Case study: Combination of data and a simple model to increase time resolution in the French inventory
As many countries, France has an efficient forest inventory which provides accurate estimates of tree growth, harvest and mortality. The associated drawback is a coarse time resolution which hinders appropriation of the reported data by policy makers. To bridge this gap, a simple model combining 5-yearly forest inventory data with annual statistics was developed, allowing meaningful annual estimates which, among others, reflect dramatic events such as storms in the time series.
Thanks to the rolling monitoring of permanent plots, the French forest inventory provides accurate estimates of tree growth, harvest and mortality on a 5-yearly basis (it takes five years for all of the plots to be sampled once, after which sampling starts again). This coarse time resolution does not reflect annual variability, for example caused by natural disturbances, which led policy makers to question why they could not identify the effect of dramatic events in the time series of forest inventory data.
For this reason, the French GHG inventory developed a simple model to combine the 5-yearly forest inventory data with annual statistics on harvest, collected by the ministry in charge of the wood industry. This latter dataset is less accurate than the inventory but has a finer time resolution. Combining these two existing sets of information allows France to track the annual effects of natural disturbances and forestry practices while maintaining the best possible accuracy over the long term.
Frequently, different data can exist for the same type of parameter, and it is sometimes difficult to know which one to prioritise. It is also common to have data with high spatial resolution and data with high temporal resolution but none combining the two dimensions, although it would be useful.
Two distinct methods are used to estimate forest harvests in France:
A ‘direct’ method of wood removals by the national forest inventory. The estimate provides volumes harvested over rolling 5-year periods over big regions. This data is considered reliable for 5-year periods.
A ‘model’ method by which the annual harvest level is estimated from various timber sales and wood energy consumption statistics, via a model that makes it possible to estimate the timber harvest and its destination.
The ‘model’ approach is calibrated on the ‘direct’ method so that the cumulated total of the model method corresponds to the ‘direct’ method over the long term. This calibration is not made on the basis of the 5-year periods which have high variability but on the entire period covered by the inventory (i.e. from 2005 to the previous year). The calibration modifies the result of the ‘model’ method by a few percents over the entire time series. This allows the reporting of annual variations while maintaining the best possible accuracy over the long term.
In addition, the model approach makes it possible to estimate harvest since 1990 and thereby allows reporting since 1990. The calibration procedure guarantees time-series consistency, as requested by the IPCC Guidelines.

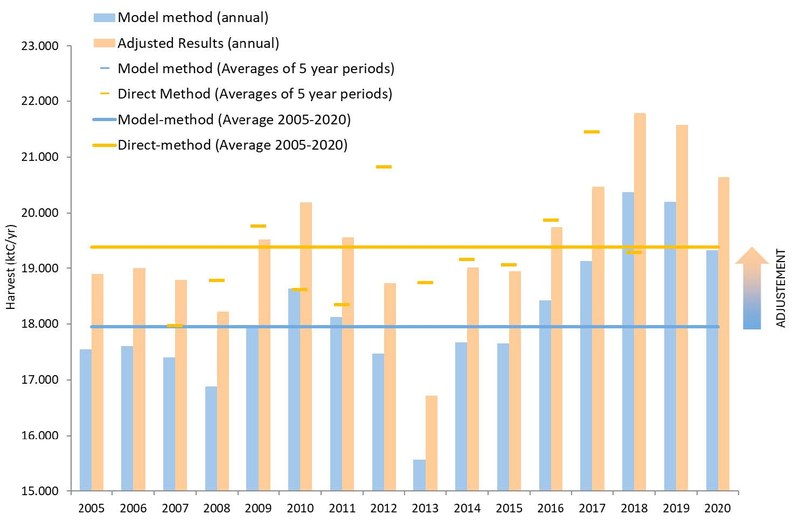

Figure 1: Combination of two datasets to increase time resolution while maintaining the best possible accuracy level (harvest in forests in kt C/yr.)
Source: Own compilation based on 2023 National inventory of France.
