The overall picture of the energy system

Figure Created 02 Oct 2015 Published 04 Dec 2015 Last modified 30 Jan 2017
Topics: ,

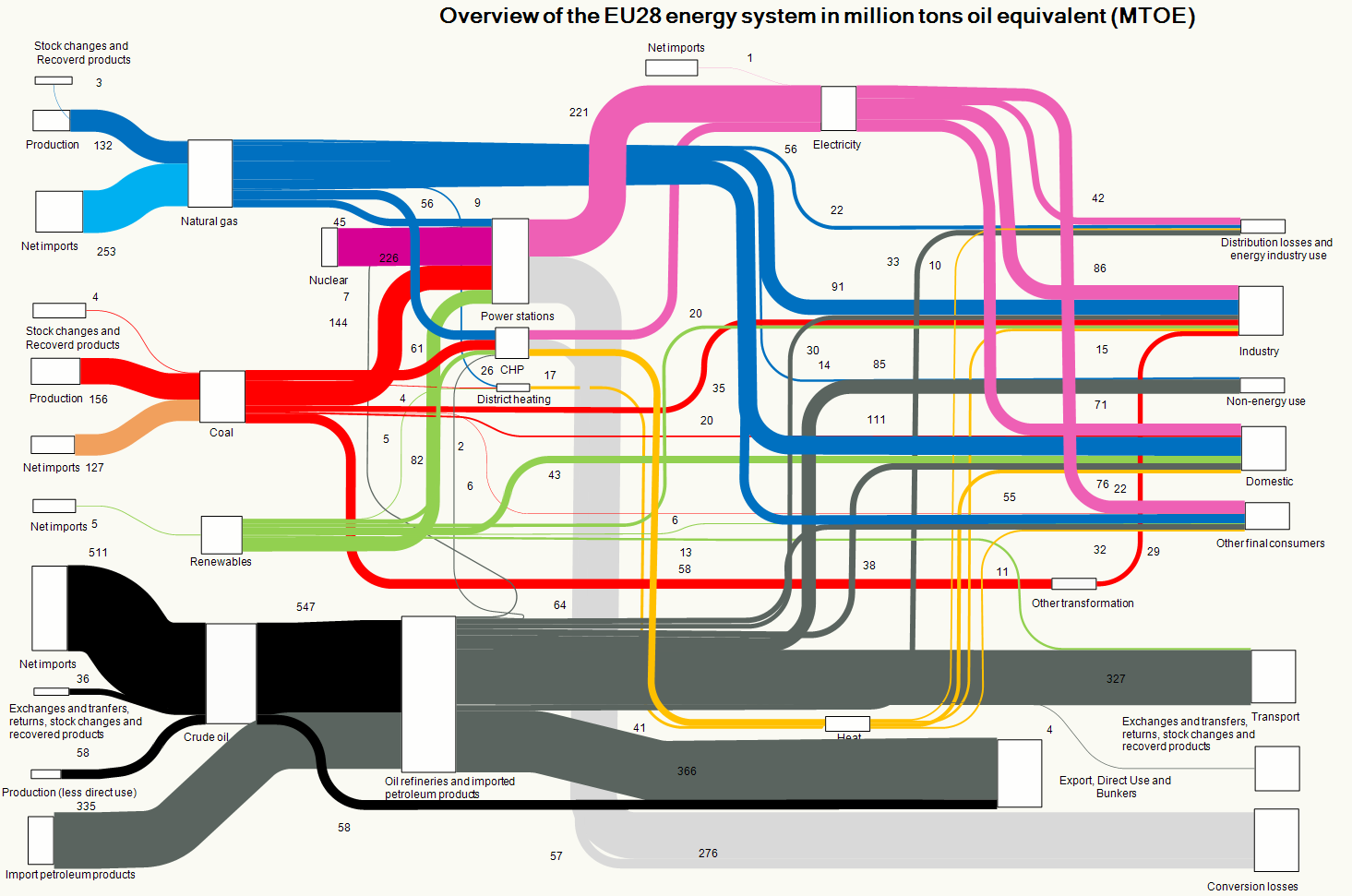

This Sankey diagram shows the composition of the primary energy entering the energy system of the EU-28 in 2013, and where this primary energy was used, either as losses or as consumption by specific sectors of the economy. The units are million tonnes of oil equivalent (Mtoe).
