Projections for combined changes in temperature and precipitation

Figure Created 07 Jan 2013 Published 11 Jan 2013 Last modified 21 Dec 2016
1 min read

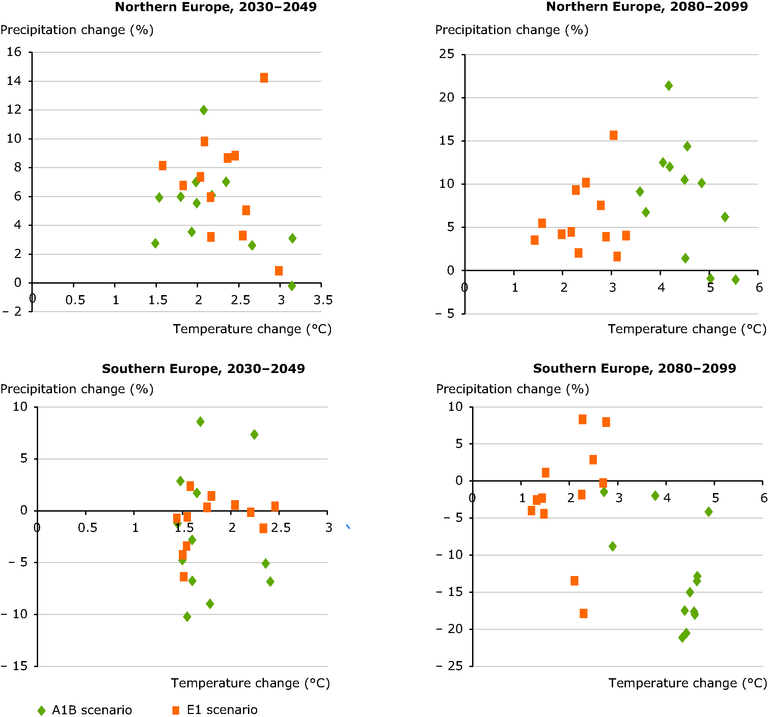

Annual changes in temperature and precipitation in northern (top panels) and southern Europe (bottom panels) for the periods 2030–2049 (left panels) and 2080–2099 (right panels) relative to 1961–1990. GCM simulations for the SRES A1B scenario, which assumes rather high population and economic growth and a balanced use of energy sources, are shown with green points. Comparable simulations for the ENSEMBLES E1 mitigation scenario are shown with orange points.
