Predicted and observed values of effective mesh density according to the six predictive models for the six groups of regions studied in Europe

Figure Created 26 Sep 2011 Published 26 Sep 2011 Last modified 29 Nov 2012
Topics: ,

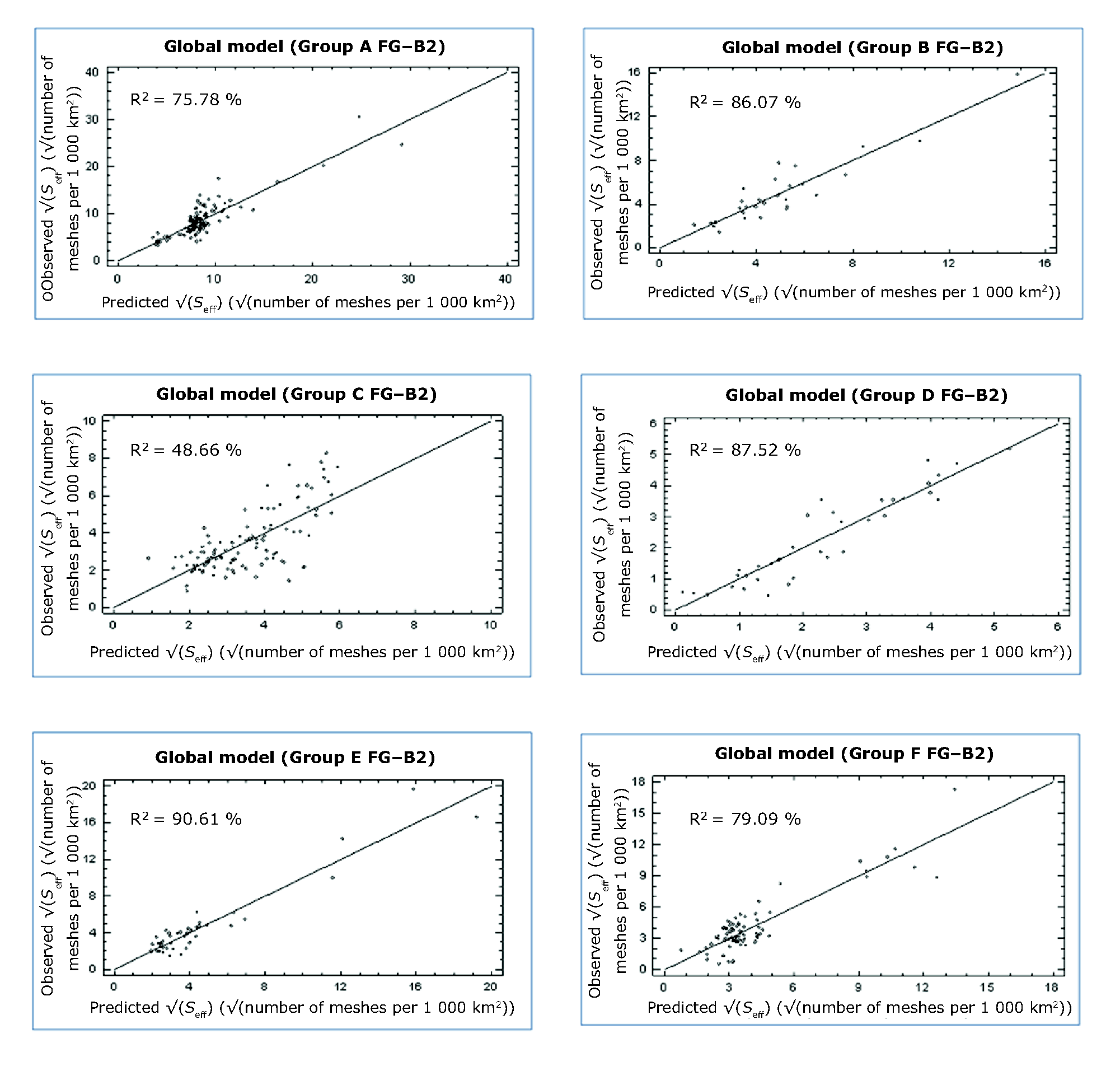

Effective mesh density values by NUTS-X region for Fragmentation Geometry FG-B2 in 2009. The NUTS-X regions represented by points above the diagonal line are more fragmented than predicted and those represented by by points below the diagonal line are less fragmented than predicted. All models shown include all available variables in each group and use a square root transformation for seff.

Metadata

information.png Last upload:
26 Sep 2011
information.png Temporal coverage:
information.png Tags:
, , ,
information.png Geographic coverage:
, , , , , , , , , , , , , , , , , , , , , , , , , , , ,
information.png Rights:
EEA standard re-use policy: unless otherwise indicated, re-use of content on the EEA website for commercial or non-commercial purposes is permitted free of charge, provided that the source is acknowledged (http://www.eea.europa.eu/legal/copyright). Copyright holder: Swiss Federal Office for the Environment (FOEN), Concordia University - Geography, Planning and Environment, European Environment Agency (EEA).
information.png Owners:
Swiss Federal Office for the Environment (FOEN)
Concordia University - Geography, Planning and Environment
European Environment Agency (EEA)
information.png Figure type:
Graph

Additional information

The objective of this task is calculate “effective mesh size” as indicator of landscape fragmentation. Effective mesh size (Meff) is proportional to the probability of two points chosen randomly in region being connected. This probability is then converted into the size of a patch – the effective mesh size. The unit of Meff is that of area (e.g. ha). This area corresponds to the size of “meshes” of  regular network that has the same degree of fragmentation and it can be compared with the values of Meff from other regions. The smaller the effective mesh size, the more fragmented the landscape.
