Figure

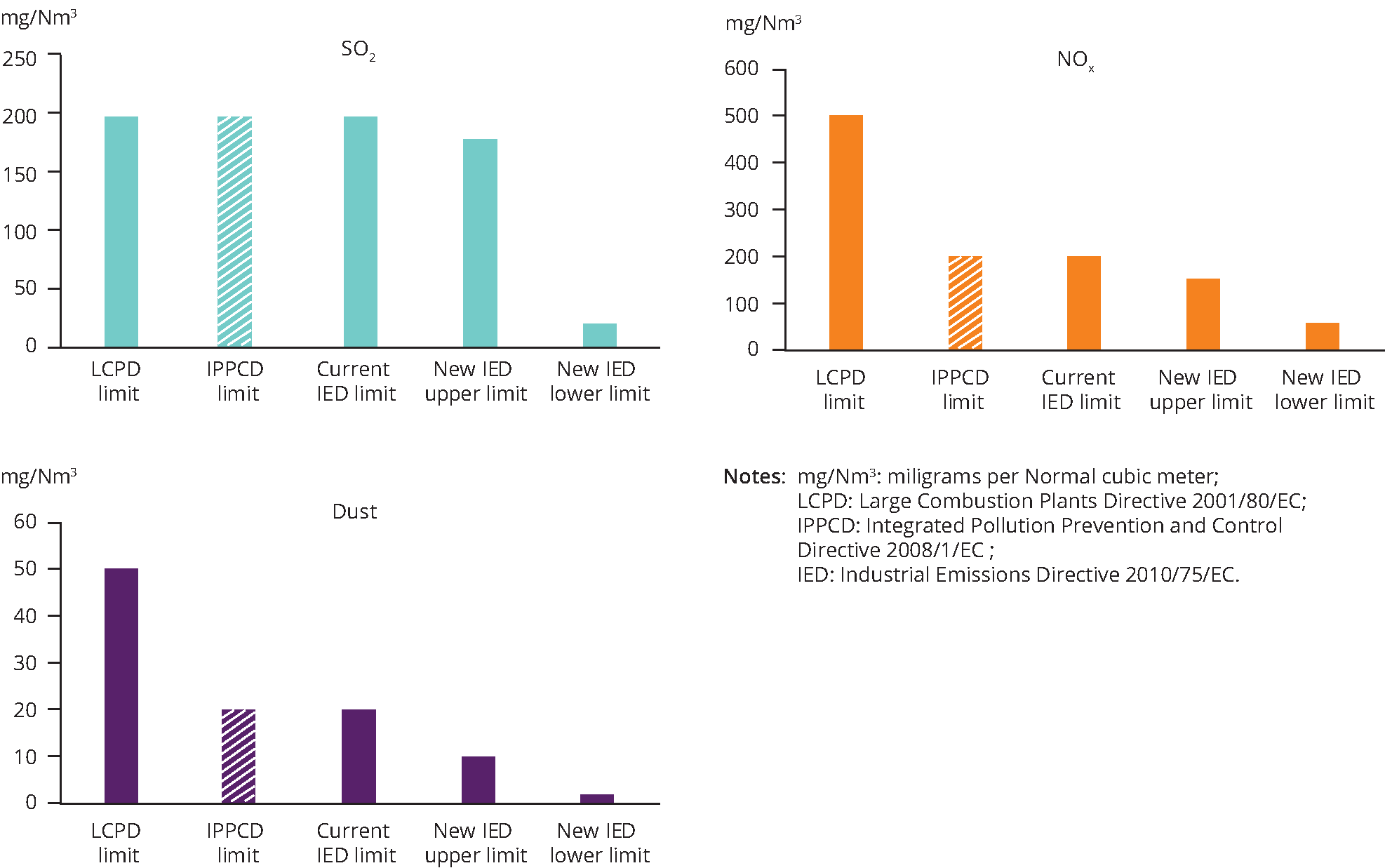

Level of ambition with respect to SO2, Dust and NOx emission levels in the LCPD, the IPPCD and the IED

Figure Created 10 Dec 2018 Published 12 Dec 2018 Last modified 11 Dec 2018

1 min read

Topics: Industry Energy

The three graphs show the progression of emission limits in EU industrial emission policy over time. The example chosen is that emission limits for SO2, NOx and dust from existing large coal fired power plants.

https://www.eea.europa.eu/data-and-maps/figures/level-of-ambition-with-respect/fig02-level-of-ambition-with.eps/image_large

Download

European data

Microsoft Excel (Office 2010)
600.85 KB

Fig 2 metadata.xlsx

Metadata

Methodology:: Emission limits were taken from
1) Large Combustion Plant Directive 2001/80/EC for existing plants burning solid fuel other than biomass (02 content 6 %) above 300 MWth (SO2) and above 500MWth (NOx, dust);
2) 2006 Large Combustion Plant Best Available Technique Reference Document under the Integrated Pollution Prevention and Control Directive 2008/1/EC for existing plants burning coal and lignite above 300MWth;
3) Industrial Emission Directive 2010/75/EU (IED) for existing plants (from 2002 or younger) burning coal and lignite above 300 MWth;
4) 2017 Best Available Technique conclusion under the IED for existing plants burning coal and lignite above 300 MWth (for NOx and SO2 (fluidised bed boilers)) and 300-1000 MWth for dust.
Units:: mg/Nm3
Rights:: EEA standard re-use policy: unless otherwise indicated, re-use of content on the EEA website for commercial or non-commercial purposes is permitted free of charge, provided that the source is acknowledged (https://www.eea.europa.eu/legal/copyright). Copyright holder: European Environment Agency (EEA).
Owners:: European Environment Agency (EEA)
Figure type:: Graph

Permalinks

Permalink to this version: 3c926f26ce4e476882346e788d693815
Permalink to latest version: PCX0DKWR7H

Geographic coverage

Austria Belgium Bulgaria Croatia Cyprus Czechia Denmark Estonia Finland France Germany Greece Hungary Ireland Italy Latvia Lithuania Luxembourg Malta Netherlands Poland Portugal Romania Slovakia Slovenia Spain Sweden United Kingdom
