Figure

Estimated impact of different factors on the reduction in emissions of NOX and SO2 from public electricity and heat production, EEA-32, 1990–2008

Figure Created 12 Jan 2011 Published 12 Jan 2011 Last modified 29 Nov 2012

1 min read

Topics: Air pollution Energy

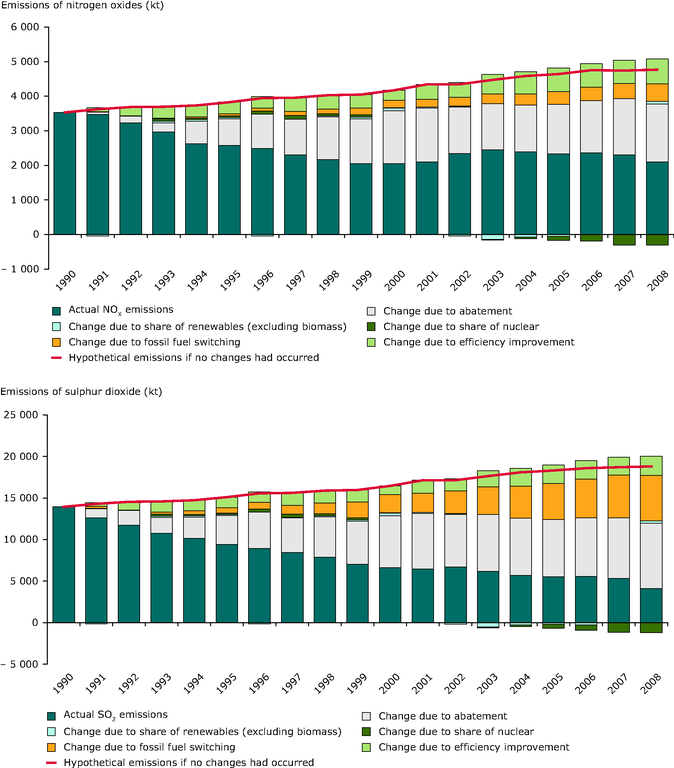

The charts show the estimated contributions of various factors affecting emissions from public electricity and heat production including public thermal, nuclear, hydro and wind plants. The top line represents the hypothetical development of emissions that would have occurred due to increasing public heat and electricity production between 1990 and 2006, if the structure and performance of electricity and heat production had remained unchanged. However, there were a number of changes to sector’s structure that tended to reduce emissions, and the contributions of each of these factors to the emission reduction are shown. The cumulative effect of all these changes was that emissions actually followed the trend shown by the lower bars.

https://www.eea.europa.eu/data-and-maps/figures/estimated-impact-of-different-factors-5/ap113_fig2-10.eps/image_large

Download

Hard copy

Microsoft Excel spreadsheet
185.50 KB

AP113_explanatory_factors_SO2_NOx1990-2008.xls

Metadata

Methodology:: Refer to EEA’s EN09 indicator factsheet specification HYPERLINK "http://www.eea.europa.eu/data-and-maps/indicators/en09-emissions-co2-so2-and-1" http://www.eea.europa.eu/data-and-maps/indicators/en09-emissions-co2-so2-and-1
Units:: kt
Rights:: EEA standard re-use policy: unless otherwise indicated, re-use of content on the EEA website for commercial or non-commercial purposes is permitted free of charge, provided that the source is acknowledged (https://www.eea.europa.eu/legal/copyright). Copyright holder: European Environment Agency (EEA).
Owners:: European Environment Agency (EEA)
Figure type:: Graph

Permalinks

Permalink to this version: 4d2dd77f91f422da95c35963c138e8da
Permalink to latest version: MDPTZZ8A4G

Geographic coverage

Austria Belgium Bulgaria Cyprus Czechia Denmark Estonia Finland France Germany Greece Hungary Iceland Ireland Italy Latvia Liechtenstein Lithuania Luxembourg Malta Netherlands Norway Poland Portugal Romania Slovakia Slovenia Spain Sweden Switzerland Turkey United Kingdom
