3. Survey of reported data for 1997

3. Survey of reported data for 1997

The location of monitoring stations in EU Member States which are used for the implementation of the ozone directive and which are reporting over 1997, is presented in Map 1. Stations located in other European countries which have reported ozone data on a voluntary basis are shown as well. In total information for 984 stations in 15 Member States has been received; for 100 stations in the six reporting non-EU countries information has been received. All reporting countries use the reference method (UV absorption) as prescribed in Annex V of the Ozone Directive, however, at a limited number of stations chemiluminescence is used.

In 1997 only one exceedance of the threshold value of 360 µg/m3 for hourly values has been reported1: on 18 June, 13.00 a hourly ozone concentration of 383 µg/m3 was measured at Lykovrissi (Athens, Greece). This day was the start of an ozone episode in Athens. The station Lykovrissi reported exceedances of the human health related threshold value of 110 µg/m3 for 8-hourly averaged during the period 18-24 June. During the whole month of June, concentrations were high in Athens: on 17 days at least one (out of seven) stations reported an hourly value exceeding 180 µg/m3. On 22 June all seven stations reported an exceedance with an maximum of 229 µg/m3. See for a more extensive description of this episode de Leeuw et al. (1997).

A summary of the maximum concentration measured at any of the reporting stations where exceedance2 of a threshold value is observed is presented in Table 3. When no exceedances of a threshold have been reported by a country this is indicated with a dash (-).

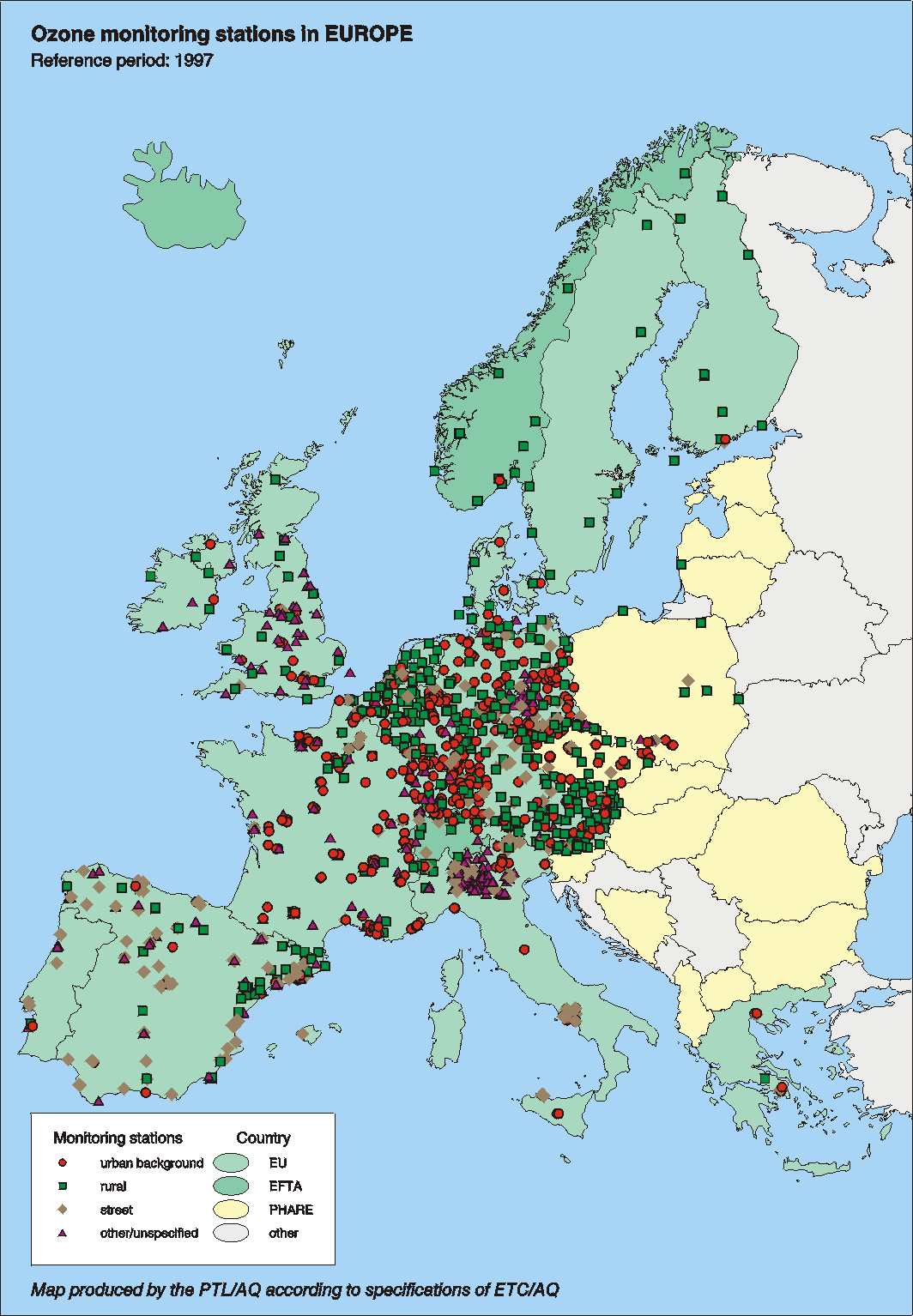

Map 1. Location of ozone monitoring stations as reported by Member States in the framework of the Ozone Directive for the reference period 1997. Stations for which other European countries submitted information are shown as well.

Table 3. Maximum ozone concentrations (in µg/m3) measured during a period of exceedance of threshold values (reference period 1 January - 31 December 1997). A dash (-) indicates that no exceedances have been observed; na indicates that no data are available.



180
(1h)

200
(1h)

360
(1h)

110
(8h-a)

110
(8h-b)

65
(24h)

AT

228

228

-

166

171

153

BE

277

277

-

205

219

171

DE

253

253

-

221

215

214

DK

181

-

-

141

155

133

ES

279

2791

-

na

na

na

FI

-

-

-

147

136

119

FR

1992

270

-

184

210

170

GB

314

314

-

188

195

140

GR

383

383

383

221

246

138

IE

-

-

-

151

131

133

IT

353

353

-

207

230

3533

LU

203

203

-

166

174

148

NL

266

266

-

183

199

121

PT

271

271

-

204

230

174

SE

-

-

-

141

144

128

EU-15

383

383

383

221

246

3533

CH

274

274

-

182

208

166

CZ

200

200

-

177

182

148

LV

-

-

-

115

127

102

NO

-

-

-

162

162

162

PL

222

222

-

163

168

135

SK

-

-

-

135

149

122

all

383

383

383

221

246

3533

(a) based on three non-overlapping eight hourly values between 0.00-8.00; 8.00-16.00; 16.00-24.00;
(b) based on the eight hourly value between 12.00 - 20.00;
(1) exceedances of the threshold of 200 µg/m3 have not been reported; a maximum concentration of 279 µg/m3 is deduced from the information on exceedances of the threshold of 180 µg/m3;
(2) for a number of stations exceedances of the 200 µg/m3 threshold have not been reported as exceedances of the 180 µg/m3 threshold;
(3) there are clear indications that the maximum concentration refers to an hourly, not daily averaged value.

As the number of monitoring stations differs widely from country to country, the absolute number of exceedances is less suitable for comparison. Therefore, the concept of "occurrence of exceedances" is introduced here. Occurrence of exceedances is defined as the average number of observed exceedances per country, that is, the total number of exceedances summed over all the stations of a country divided by the total number of reporting stations. A summary of occurrence of exceedances is presented in Table 4. Still, Table 4 has to be interpreted carefully as there are additional reasons which hamper a comparison between the countries. Firstly, the local environment (in particular NOx sources) influence the ozone levels; the differences between countries partly result from the differences in the ratios of street, urban and rural stations. Secondly, about 20% of the reporting stations show a data coverage of less than 75% (or data coverage is not known); this might result in an underestimation of the number of exceedances. Also the differences in definition of an exceedance (some countries count an exceedance when the concentration is GREATER THAN the threshold value, other countries count it when the concentrations is EQUAL TO OR GREATER THAN the threshold) may introduce difference in occurrence of exceedances.

Adverse effects of ozone on human health and vegetation will not only depend on the frequency by which a threshold is violated but also on the severity of the exceedance. The severity of an exceedance can be expressed by the Accumulated exposure Over a Threshold (AOT). AOT-values are calculated on basis on hourly concentration according to:

where = 0 for concentration Ci less than threshold T and = 1 when Ci exceeds the threshold T; N is the number of valid measurements. The AOT is expressed in concentration x time units, for example in ppm.h or mg.h.m-3. From the received information it is not possible to calculate an AOT-level as during a period of exceedance only the maximum concentration is given. As an approximation of the exposure we can calculate an exceedance rate which is defined as:

where the summation is now over the total number of exceedance NET and d is the duration of the exceedance expressed in number of averaging periods, AV. Similar to AOT, the ER is expressed in concentration x time units, for example in ppm.h or mg.h.m-3. In Table 4 next to the occurrence of exceedances, the exceedance rate averaged over the number of exceedances, is given. Examination of this table shows some - but certainly no perfect - correlation between the number of exceedances and the severity of exceedance. The data suggests that in southern countries (Greece, Italy, Portugal) the concentrations are generally much higher during an exceedance of the information threshold than in the northern countries. The steep fall-off in the number of exceedances of levels of 180, 200 and 240 µg/m3 in northern countries compared to the more gradual decrease in southern countries as shown in Figure 2, leads to a similar conclusion.

For each of the countries the lowest and highest 50-, 98- and 99.9-percentile values observed at individual stations are presented in Table 5. In this table also information on the maximum values is included. Note that the maximum 8-hourly concentration, as reported in Table 5 is based on a moving average and may therefore differ from the values in Table 3 which are based on fixed 8-hourly periods. The Czech Republic has not submitted percentile values for moving eight-hourly concentrations; Spain has submitted no statistical information at all. Statistics for Latvia and the Netherlands are not included in the table. In case of Latvia, the data coverage for the submitting station is below the required 75%; this low data coverage is largely caused by missing data for the period 1 January - mid April. The information on maximum concentrations and on exceedances will therefore be reliable. In case of the Netherlands no information on data coverage has been submitted and therefore the validity of the percentile values can not be judged. Full details on percentile values and the number of exceedances at the individual stations is presented in Tables I.3 of Annex I.

Figure 2. Relative change in exceedances for the threshold values of 180, 200 and 240 µg/m3. The number of exceedances of 180 µg/m3 is set to unity; reference period 1 January - 31 December 1997. For Spain no information on exceedances of 200 µg/m3 has been submitted. For all countries, the number of exceedances of 240 µg/m3 has been extracted from the information on exceedances of the threshold of 180 µg/m3.

As ozone concentrations show a high auto-correlation, the correlation between 1-h and 8-h percentile values is no surprise. Median values for hourly and moving 8-hourly concentrations are very similar. The 98-percentile for 8-h values is generally about 10% lower than the corresponding 1-h value although this ratio is slightly different for the various types of stations and has also a meteorological dependence. Detailed information on the percentile values and maximum concentrations observed at individual monitoring stations is given in Annex I, Table I.3.3

For a large number of countries additional statistical information on NOx, NO2 and VOC concentrations has been received. This information is primarily used here for the classification of stations. Being precursors of ozone, information on ambient levels of NOx and VOC is essential to evaluate the effectiveness of ozone abatement strategy. The information voluntary submitted in the framework of the Ozone Directive is, however, not sufficient for such an evaluation. The limited time series (four years or less) and generally lack of information on the local environment of the stations, hampers an analysis of a possible trend in precursor NOx and VOC emissions. As the reported NO2 and O3 concentrations are not measured simultaneously, it is not possible to improve the insight in spatial variability of ozone concentration based on mapping of oxidant (sum of NO2 and ozone) concentrations. Oxidant concentrations are representative for a larger area as oxidant is less dependent on local condition and meteorological conditions than either ozone or NO2 (see also Annex II). An overview of the reported NOx, NO2 and VOC concentrations is given in Table I.4 and I.5 of Annex I.

Table 4. Occurrence of exceedances (OoE; in days) and average exceedance rate (ER; in (µg.h)/m3 for the threshold value of 180 µg/m3 and in (mg.h)/m3 for the threshold values of 110 and 65 µg/m3); reference period 1 January - 31 December 1997. na = no data available.



threshold value (in µg/m3)



number of

180-1h

110-8h(a)

65-24h



stations (b)

OoE

ER

OoE

ER

OoE

ER

AT

111

0.1

2.7

30.5

2.9

119

55.4

BE

25

3.2

151.7

23.1

4.7

50.4

19.4

DE

373

1.4

52.2

25.5

3.4

64.0

24.2

DK

5

0.2

0.3

8.4

0.9

78.4

18.3

ES

36

4.2

141.9

na

na

na

na

FI

11

0.0

0.0

6.9

0.5

128

42.7

FR

151

1.2

13.1

21.9

2.8

64.6

24.4

GB

71

0.7

27.5

6.5

1.0

33.0

9.1

GR

13

10.1

710.1

32.0

5.2

64.6

22.7

IE

6

0

0.0

2.7

0.3

73.3

20.7

IT

121

12.3

863.9

33.8

5.4

68.0

51.3

LU

5

1.0

17.2

26.2

4.7

70.4

34.2

NL

39

1.2

44.1

14.5

2.4

31.5

10.2

PT

11

3.1

160.9

22.8

4.1

52.8

23.1

SE

6

0

0

9.5

0.9

166

56.0

EU-15

984

2.6

136

23.2

3.1

60.3

24.8

CH

13

3.7

130

58.5

9.3

135

67.2

CZ

48

0.2

3.4

28.2

2.9

112

46.9

LV

1

0

0

6.0

0.5

55.0

12.5

NO

14

0

0

6.7

1.1

147

97.3

PL

16

0.5

11.7

15.9

1.6

79.1

29.0

SK

8

0

0

4.8

0.3

30.3

7.6

(a) based on the eight hourly value between 12.00-20.00.
(b) note that differences in the number of stations reporting for each of the threshold levels may occur.

Table 5. Range in reported 50-, 98- and 99.9-percentile values and maximum observed values (based on hourly and moving eight-hourly average concentrations, period: 1997) observed at individual monitoring stations in reporting countries (in µg/m3); na = range in percentile values not available;
? = range in percentile values can not be calculated as data coverage is below 75%, or information on data coverage is lacking; * = additional information submitted on a voluntary basis.



1h-P50

1h-P98

1h-P99.9*

1h-MAX



min

max

min

max

min

max

min

max

AT

15

97

90

143

117

176

124

228

BE

18

56

96

154

150

203

166

277

DE

8

102

63

193

99

225

109

253

DK

44

62

90

117

116

153

124

181

ES

na

na

na

na

na

na

na

na

FI

35

74

86

112

106

140

118

179

FR

11

97

82

164

111

214

26

270

GB

10

64

68

124

102

194

74

314

GR

18

56

82

167

117

266

137

383

IE

40

66

82

106

na

na

114

173

IT

11

86

51

186

98

237

121

271

LU

20

62

79

146

115

182

131

203

NL

?

?

?

?

?

?

67

266

PT

10

65

44

157

63

177

77

271

SE

59

69

96

116

114

147

118

169

CH

14

87

116

163

142

205

150

274

CZ

21

80

82

140

106

171

127

200

LV

?

?

?

?

?

?



141

NO

52

70

88

111

102

146

108

162

PL

22

82

90

127

127

185

136

222

SK



50



113



130

122

161




8h-P50

8h-P98

8h-P99.9*

8h-MAX



min

max

min

max

min

max

min

max

AT

15

97

83

141

108

167

112

174

BE

20

56

88

175

134

202

143

226

DE

14

102

55

180

82

219

93

225

DK

44

62

86

114

109

147

112

158

ES

na

na

na

na

na

na

na

na

FI

35

75

81

110

92

133

102

147

FR

14

97

75

159

101

194

15

211

GB

12

66

62

118

92

178

60

200

GR

20

57

72

147

97

203

109

252

IE

39

66

79

104

na

na

110

162

IT

48

48

129

129

162

162

94

230

LU

22

62

72

140

103

166

110

175

NL

?

?

?

?

?

?

57

199

PT

11

65

38

154

53

165

57

233

SE

59

69

96

113

112

142

114

147

CH

na

na

na

na

na

na

135

209

CZ

24

80

74

134

97

160

107

187

LV

?

?

?

?

?

?



129

NO

51

70

88

108

101

142

102

147

PL

23

81

81

124

114

157

125

175

SK

50



105



120

108

149

1 On 20 June 1997 the Italian station Via Venezia in Caltanissetta (Sicilia) reported an exceedance of the threshold value of 200 mg/m3 during two hours; as maximum concentration during this exceedance a value of 379 mg/m3 was reported. This value has not been reported as an exceedance of the 360 mg/m3 level. According to information from the Italian data supplier, this value is in error and should be disregarded; another exceedance, observed at nighttime in the winter at the same station, should be disregarded as well (Mr. P. Lagrotta, personal communication).

2 In this report exceedances are counted on a daily basis, that is, a day on which at least one 1h- or 8h-concentration exceeds the threshold value, is marked as an exceedance.

3 Annex I is only available in computer readable form from the ETC-AQ web-site. In this report a description of the tables in Annex I is provided.
