Abundance and distribution of selected species (SEBI 001) - Assessment DRAFT created Nov 2010
Overall, Europe's common bird populations reduced by around 10 % since 1980. Common farmland birds declined most severely (around 50 %) but common forest birds also declined by some 5 %. Falls have levelled off since the late 1990s. Europe's grassland butterflies have declined dramatically (almost 70 %) since 1990 and this reduction shows no sign yet of levelling off.
Have the declines in common species in Europe been halted?
Grassland butterflies — population index (1990 = 100)
Note: How to read the graph: since 1990, grassland butterflies have declined by almost 70 %.
- Conservation of butterflies, moths and dragonflies provided by Dutch Butterfly Conservation

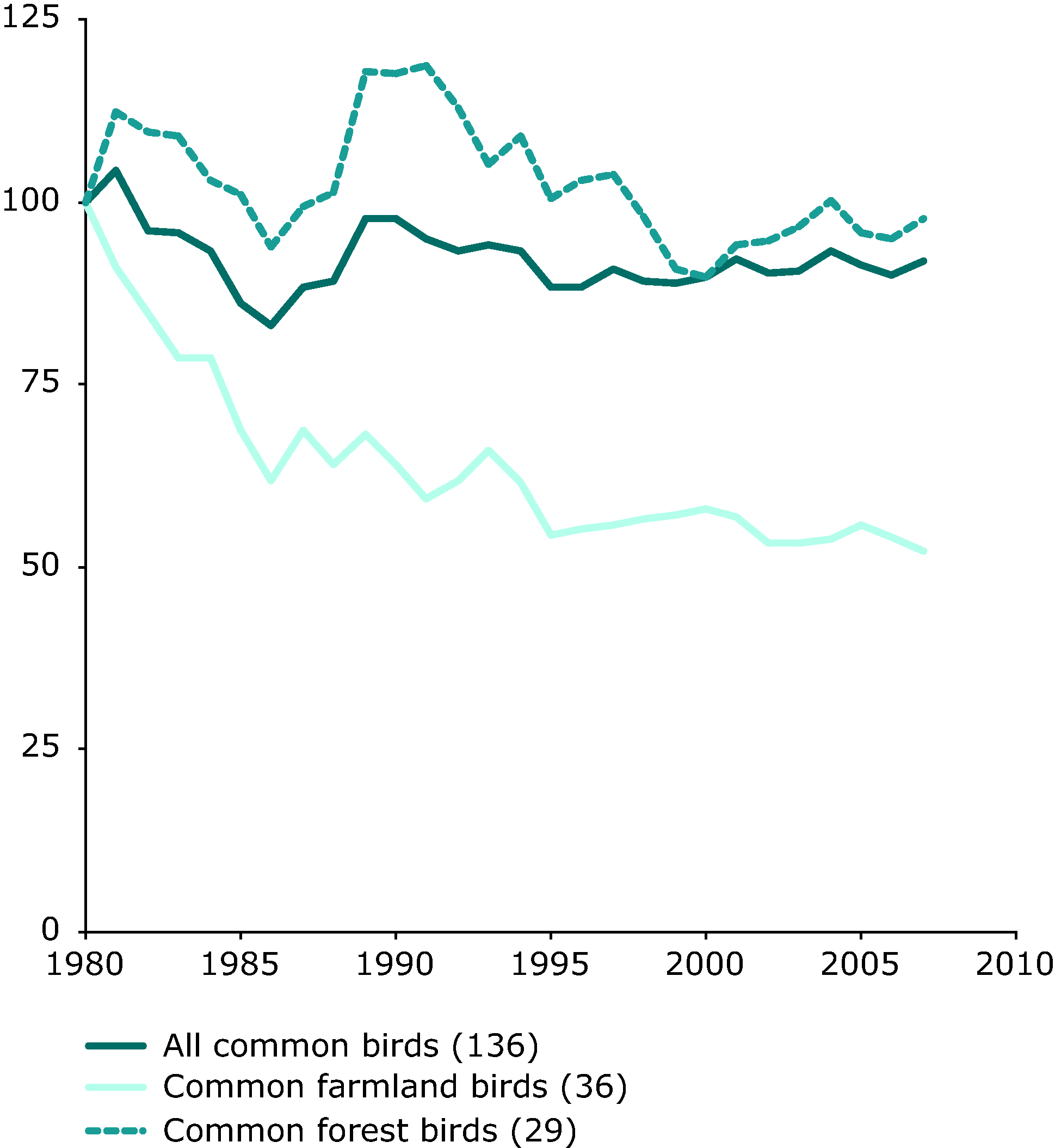

Common birds in Europe — population index (1980 = 100)
Note: How to read the graph: since 1980 the number of common farmland birds has declined by around 50 %
EBCC/RSPB/BirdLife International/Statistics Netherlands, 2009.
For some populations of European common birds, downward trends appear to have slowly levelled off but it needs to be borne in mind that significant losses had already happened by 1990. Of the more common bird species, farmland birds have declined. The initial steep decline of farmland birds was associated with increasing agricultural specialisation and intensity in some areas, and large-scale marginalisation and land abandonment in others. The falling trend has levelled off since the late 1990s, partly because of stabilising inputs of nutrients and pesticides and the introduction of set-aside in the EU-15, and partly because of drastically lower nutrient inputs in the EU-10 as a result of political reforms and the resulting economic crisis in the agricultural sector. An increase in agricultural production in eastern Europe, if linked to higher inputs of nutrients and pesticides, combined with further land abandonment in some parts of Europe and the abolition of set-aside, may lead to a new decline.
Conservation measures adopted under the EU Birds Directive have proven effective in the recovery of threatened bird populations (Donald et al., 2007) but not in the case of more widespread birds species, where different recovery mechanisms are now required. Well-designed agri-environment measures have been shown to reverse bird declines at local levels. The recent loss of set-aside areas under agricultural policy may result in greater pressures on many farmland bird species.
The challenge now is to deploy the Birds Directive conservation measures or others widely enough to help populations recover at national and European scales. Trends in species in Europe are also driven by pressures outside Europe, e.g. for migratory bird species, and a comprehensive response would need to be effective beyond European territory.
Grassland butterflies are declining severely; their populations have declined by almost 70%, indicating a dramatic loss of grassland biodiversity.
The main driver behind the decline of grassland butterflies is the change in rural land use: agricultural intensification where the land is relatively flat and easy to cultivate, abandonment in mountains and wet areas, mainly in Eastern and Southern Europe. Agricultural intensification leads to uniform, almost sterile grasslands, where the management is so intensive that grassland butterflies can only survive in traditional farmed low input systems (High Nature Value Farmland) as well as nature reserves, and marginal land such as road verges and amenity areas.
An increase in the population index means that there are more species with populations increased than species with populations decreased: it does not necessarily mean that the population of all species has increased. It can be due to expansion of some species (typically, generalists) at the expense of other species (typically, specialists). It must also be noted that populations fluctuate on a yearly basis.
In the absence of the information on abundance, information on the distribution of species can help assess species status. However, at a European level, this type of information is still weak for other groups of species.
Indicator specification and metadata
This indicator shows trends in the abundance of common birds and butterflies over time across their European ranges.
Index (relative values, 1990 set to 100)
Policy context and targets
a. common birds
The EU has taken action on the protection of biodiversity for a considerable number of years, for example, by adopting the irective 0409/1979 and the Habitats Directive 0043/1992. In 2001, the Gothenburg European Council adopted the sixth Environmental Action Programme of the EU, which included the objective of halting biodiversity loss by 2010. In response to its commitments under the Convention of Biological Diversity, the EU also adopted the Biodiversity Action Plan for Agriculture in 2001.
The Message from Malahide was adopted in May 2004 at the stakeholders' conference on Biodiversity and the EU - Sustaining Life, Sustaining Livelihoods, jointly organised by the Irish Presidency and the European Commission in Malahide. The Message identified 18 objectives and related targets that could form the basis for future priority action in reaching the 2010 EU target of halting the loss of biodiversity (the Gothenburg objective) as well as contributing to the global target of significantly reducing the current rate of loss of biodiversity by 2010.
In line with the results of The Tenth meeting of the Conference of the Parties to the Convention on Biological Diversity (CBD), held in Nagoya, Japan (October 2010), a new EU biodiversity strategy Our life insurance, our natural capital: an EU biodiversity strategy to 2020 was adopted by the European Commission in May 2011. This provided a framework for the EU to meet its own biodiversity objectives and global commitments as a party to the CBD. The strategy is built around six mutually supportive targets, which address the main drivers of biodiversity loss and aim to reduce the key pressures on nature and ecosystem services in the EU. Each target is further translated into a set of time-bound actions and other accompanying measures. The strategy also highlights the need to enhance contributions from other environmental policies and initiatives including sectoral integration across EU policies such as agriculture, fisheries, forestry, water, climate and energy. Target 3A of the strategy seeks to maximise “areas under agriculture across grasslands, arable land and permanent crops that are covered by biodiversity-related measures under the Common agricultural policy (CAP) so as to ensure the status of species and habitats that depend on, or are affected by agriculture”.
Moreover, this indicator needs to be seen in the context of the CAP, in particular its rural development part and the proposals for CAP reform post-2013. Relevant policy measures under the rural development policy include agri-environmental schemes and compensatory allowances for areas of natural constraint, including areas with environmental restrictions.
Insects are by far the most species-rich group of animals, representing over 50% of terrestrial biodiversity. Contrary to most other groups of insects, butterflies are well documented, easy to recognise and popular with the general public. Butterflies use the landscape at a fine scale and react quickly to changes in management, intensification or abandonment. Furthermore, a sustainable butterfly population relies on a network of breeding habitats scattered over the landscape, where species exist in a metapopulation structure. This makes butterflies especially vulnerable to habitat fragmentation. Moreover, many butterflies are highly sensitive to climate change and nitrogen deposition and, because data from fine-scale mapping is available in many countries, they have been used in models predicting the impact of climate change on wildlife. Butterflies have been counted in Butterfly Monitoring Schemes since 1976.
Relation of the indicator to the focal area
a. common birds
Each species reacts differently to the various anthropogenic pressures that potentially
impact on the population size. By monitoring a large enough number of populations
from different bird groups, different bio-geographical regions and areas subjected to
different types and levels of pressures, this indicator has the potential to alert decision
makers to the decline of populations in relation to environmental and geographic
factors, as well as their potential drivers.
The European Butterfly Indicator will be able to deliver a reliable measurement of
changes in the size of European butterfly populations. Since butterfly trends are a good
indicator of changes in the insect group as a whole, which in turn represents more than
50% of Europe's biodiversity, the European Butterfly Indicator is a useful proxy for a
wider understanding of biodiversity changes.
EU 2020 Biodiversity Headline Target
Related policy documents
EU 2020 Biodiversity Strategy
in the Communication: Our life insurance, our natural capital: an EU biodiversity strategy to 2020 (COM(2011) 244) the European Commission has adopted a new strategy to halt the loss of biodiversity and ecosystem services in the EU by 2020. There are six main targets, and 20 actions to help Europe reach its goal. The six targets cover: - Full implementation of EU nature legislation to protect biodiversity - Better protection for ecosystems, and more use of green infrastructure - More sustainable agriculture and forestry - Better management of fish stocks - Tighter controls on invasive alien species - A bigger EU contribution to averting global biodiversity loss
Methodology for indicator calculation
a. common birds
Trend information is derived from annual national breeding bird surveys in 18 European countries and spanning different periods. These surveys are obtained through the Pan-European Common Bird Monitoring scheme (PECBM) (1). A software package named TRIM (Trends and Indices for Monitoring data) is used to calculate national species' indices and then to combine these into supranational indices for species, weighted by estimates of national population sizes. TRIM allows for missing counts in the time series and yields unbiased yearly indices and standard errors using Poisson regression. Weighting is applied to allow for the fact that different countries hold different proportions of each species' European population. Updated population size estimates, derived from BirdLife International (2004), are used for weighting. Although national schemes differ in count methods in the field, these differences do not influence the supranational results because the indices are standardised before being combined. An improved hierarchical imputation procedure was introduced in 2005 to calculate supranational indices. Supranational indices for species were then combined on a geometric scale to create multi-species indicators. For more details see Gregory et al. 2005.
List of species
Common farmland birds, Europe:
Alauda arvensis, Burhinus oedicnemus, Carduelis carduelis, Columba palumbus, Emberiza citrinella, Falco tinnunculus, Galerida cristata, Hirundo rustica, Lanius collurio, Lanius senator, Limosa limosa, Miliaria calandra, Motacilla flava, Passer montanus, Saxicola rubetra, Streptopelia turtur, Sturnus vulgaris, Sylvia communis, Vanellus vanellus.
Common forest birds, Europe:
Anthus trivialis, Bonasa bonasia, Carduelis flammea, Carduelis spinus, Certhia rachydactyla,
Certhia familiaris, Coccothraustes coccothraustes, Dendrocopos minor, Dryocopus martius, Ficedula albicollis, Ficedula hypoleuca, Fringilla montifringilla, Garrulus glandarius, Hippolais icterina, Jynx torquilla, Lullula arborea, Luscinia megarhynchos, Muscicapa striata, Oriolus oriolus, Parus ater, Parus caeruleus, Parus montanus, Parus palustris, Phoenicurus phoenicurus, Phylloscopus collybita, Phylloscopus sibilatrix, Picus canus, Picus viridis, Prunella modularis, Pyrrhula pyrrhula, Regulus regulus, Sitta europaea, Sylvia borin.
Other common birds, Europe:
Accipiter nisus, Aegithalos caudatus, Buteo buteo, Carduelis cannabina, Carduelis chloris, Cettia cetti, Cisticola juncidis, Corvus corone corone/cornix, Corvus monedula, Cuculus canorus, Dendrocopos major, Emberiza schoeniclus, Erithacus rubecula, Fringilla coelebs, Motacilla alba, Parus major, Phylloscopus trochilus, Pica pica, Sylvia atricapilla, Sylvia melanocephala, Troglodytes troglodytes, Turdus merula, Turdus philomelos, Turdus viscivorus, Upupa epops.
Rationale for species selection:
The species selection for the indicator produced in June 2005 was based on BirdLife's Habitats for birds in Europe (Tucker and Evans 1997) - arguably the most comprehensive treatment of habitats and habitat use by birds. It quantitatively assesses the proportion of each species' population that occurs in predefined habitat types across Europe. The overall assessment, while mostly quantitative, also relied to some degree on expert judgment through habitat working groups.
In the PECBM scheme, species were classified according to habitat using the assessment of Tucker and Evans (1997), with the exception that montane grassland (originally included as a sub-class of agricultural habitats) was classified as a separate habitat. All species with more than 75% of their population occurring in one of the following eight habitats were classified as specialists of that habitat: marine; coastal; inland wetland; tundra, mires and moorland; boreal and temperate forests; Mediterranean forest, shrubland and rocky habitats; agricultural and grassland (excluding montane grassland); and montane grassland (Tucker and Evans 1997).
In addition, species with 10-75% of their population using only one of the above habitats were classed as specialists in that habitat, according to either Tucker and Evans (1997) for Species of European Conservation Concern (SPECs), or Snow and Perrins (1998) for non-SPECs. Species with 10-75% of their population in three or more woodland or farmland sub-categories in Tucker and Evans (1997) and 10-75 % of their population in only one other habitat category were classified as woodland or farmland specialist species respectively.
Remaining species with more than 10% of their population occurring in more than one habitat were classed as non-specialists. Any species that did not meet the above criteria (due to insufficient data) remained unclassified. Tucker and Evans (1997) include a further habitat - lowland Atlantic heathland, however, no species met the criteria to be classed as a specialist of this habitat.
This species-habitat classification is being used in a number of BirdLife analyses, for example, an analysis of farmland birds and long-distance migrants using Birds in Europe 2 trends (Donald et al., 2006; Sanderson et al., 2006). The PECBM scheme also explores a bio-geographical approach to species selection and habitat choice knowing that some species may have different habitat preferences according to the bio-geographical context.
The field method is based on the British Butterfly Monitoring Scheme (Pollard and Yates, 1993), in use in the United Kingdom since 1976. Counts are made on a line transect of 5 or 10m wide with homogeneous vegetation and vegetation structure. From March or April to September or October all butterflies 2.5m to the left and right of the recorder and 5m in front and above should be counted under standardised weather conditions. The frequency varies from weekly to three or four visits during the season. Most of the sites are recorded by skilled volunteers. All recorders have a good knowledge of the butterfly fauna at their transect, and their results are checked by butterfly experts. Feest (2006), and van Swaay and Feest (in prep.) show that butterfly survey data can be used to generate biodiversity quality indices for sites such that trends in biodiversity quality can be deduced. This will provide evidence of change more quickly than simple assessments and in a stastically robust way.
The main objective of the monitoring schemes is to assess changes in abundance at national and regional levels of butterflies, including species of the Habitat Directive.
A European index and trend is produced for each species by combining national results for that species. The individual European species indices are combined (averaged) to create multi-species supranational indicators. This method is based on the one for bird indicators (Gregory et al., 2005):
1. At National level: the indices for each species are produced for each country, using TRIM (Pannekoek and Van Strien, 2003). TRIM is a computer programme to analyse time-series of counts with missing observations using Poisson regression.
2. At Supranational level: to generate European trends, the difference in national population size of each species in each country has to be taken into account. This weighting allows for the fact that different countries hold different proportions of a species' European population (Van Strien et al., 2001). A weighting factor is established as the proportion of the country (or region) in the European distribution (Van Swaay and Warren, 1999). The missing year totals are estimated by TRIM in a way equivalent to imputing missing counts for particular sites within countries (Van Strien et al., 2001).
3. At multi-species level: for each year the geometric mean of the supranational indices is calculated.
List of species
Widespread species: Ochlodes sylvanus, Anthocharis cardamines, Lycaena phlaeas, Polyommatus icarus, Lasiommata megera, Coenonympha pamphilus and Maniola jurtina.
Specialist species: Erynnis tages, Thymelicus action, Spialia Sertorius, Cupido minimus, Maculinea arion, Maculinea nausithous, Polyommatus bellargus, Polyommatus semiargus, Polyommatus coridon and Euphydryas aurinia.
(1) The PECBM scheme is a partnership involving the European Bird Census Council, the Royal Society for the Protection of Birds, BirdLife International and Statistics Netherlands that aims to deliver policy relevant biodiversity indicators for Europe.
Methodology for gap filling
TRIM (TRends and Indices for Monitoring data) is a software package used to determine species' population trends. It allows for missing counts using estimation, and yields yearly indices and standard errors using Poisson regression. The latest version can be downloaded from the web site of Statistics Netherlands.
- a. common birds BirdLife International (2004). Birds in Europe: population estimates, trends and conservation status. Cambridge, United Kingdom: BirdLife International (BirdLife Conservation Series No. 12). Donald, P. F., Sanderson, F. J., Burfield, I. J., van Bommel, F. P. J. (2006). Further evidence of continent-wide impacts of agricultural intensification on European farmland birds, 1990-2000. Agriculture, Ecosystems and Environment 116 (2006) 189-196. Gregory, R. D., van Strien, A., Vorisek, P., Meyling, A. W. G., Noble, D. G., Foppen, R. P. B. and Gibbons, D. W. (2005) Developing indicators for European birds. Phil.Trans. R. Soc. B. 360, 269-288. Sanderson, F. J., Donald, P. F., Paina, D. J., Burfield, I. J., van Bommel, F. P. J. (2006). Long-term population declines in Afro-Palearctic migrant birds. Biological Conservation 131 (2006) 93-105. Snow, D. W., Perrins, C. M., (1998). The Birds of the Western Palearctic: Concise Edition. Oxford University Press, Oxford, United Kingdom. Strategy for the Wider Environment. BirdLife International, Cambridge, United Kingdom. Tucker, G. M., Evans, M. I., (1997). Habitats for Birds in Europe: A Conservation.
- b. butterflies Donald, P. F.; Sanderson, F. J.; Burfield, I. J.; Bierman, S. M.; Gregory, R. D.; and Waliczky, Z., 2007. 'International Conservation Policy Delivers Benefits for Birds in Europe'. Science 317: 810 Feest, A. (2006) Establishing baseline indices for the environmental quality of the biodiversity of restored habitats using a standardised sampling process. Restoration Ecology, 14:112-122. Gregory, R. D., Van Strien, A. J., Vorisek, P., Gmelig Meyling, A. W., Noble, D. G., Foppen, R. P. B. and Gibbons, D. W. (2005) Developing indicators for European birds. Phil. Trans. R. Soc. B. 360, 269-288. Pannekoek, J. and Van Strien, A. J. (2003) TRIM 3 manual. Trends and Indices for Monitoring data. CBS, Statistics Netherlands, Voorburg, Netherlands. Pollard, E. and Yates, T. J. (1995) Monitoring butterflies for ecology and conservation. Chapman and Hall, Londen. Thomas, J. A., Telfer, M. G., Roy, D. B., Preston, C. D., Greenwood, J. J. D., Asher, J., Fox, R., Clarke, R. T. and Lawton, J. H. (2004) Comparitive losses of British Butterflies, Birds, and Plants and the Global Extinction Crisis. Science 303, 1879-1881. Thomas, J. A. (2005) Monitoring change in the abundance and distribution of insects using butterflies and other indicator groups. Phil. Trans. Soc. B. 360, 339-357. Van Strien, A. J., Pannekoek, J. and Gibbons, D. W. (2001) Indexing European bird population trends using results of national monitoring schemes: a trial of a new method. Bird Study 48, 200-213. Van Swaay, C. A. M. and Warren, M. S. (1999) Red Data Book of European Butterflies (Rhopalocera). Nature and Environment series, No. 99, Council of Europe, Strasbourg. Van Swaay, C. A. M., Nowicki, P., Settele, J., van Strien, A.J. (2008) Butterfly monitoring in Europe: methods, applications and perspectives, Biodivers Conserv DOI 10.1007/s10531-008-9491-4 Van Swaay, C. A. M., van Strien, A.J. (2005) Using butterfly monitoring data to develop a European grassland butterfly indicator. In Proceeding Studies on the ecology and conservation of Butterfliesin Europe, december 2005
- The European Butterfly Indicator for Grassland species: 1990-2007 Van Swaay, C.A.M. & Van Strien, A.J. (2008) The European Butterfly Indicator for Grassland species 1990-2007. Report VS2008.022, De Vlinderstichting, Wageningen
No uncertainty has been specified
Data sets uncertainty
No uncertainty has been specified
MAIN DISADVANTAGES OF THE INDICATOR
a. common birds
- Temporal coverage: until the early 1990s, rather few European countries had common bird monitoring schemes in place, which restricts how far back in time representative trends can be calculated.
- Spatial coverage: coverage of western and central Europe is now almost complete, but a few gaps remain, and a further expansion eastwards is desired; efforts to fill them are underway.
- Limited geographical coverage.
ANALYSIS OF OPTIONS
As another candidate indicator for the headline indicator, the living planet index (LPI) was considered. The weakness of the LPI is that it relies on data that is biased towards well-monitored vertebrates in temperate latitudes, including many species that have been/are subject to ongoing conservation action, and thus is not representative of biodiversity as a whole. It relies on a limited amount of reliable time-series data gathered from a variety of sources published in scientific journals, NGO literature, or on the worldwide web. Work is ongoing to strengthen the LPI.
The PECBM indicator work is based on generic sampling of species, with no a priori bias on their selection. It has been presented and well-received at international conferences and meetings.
Options for other biodiversity species-based indicators are being considered.
Trends of common birds in Europe
provided by European Bird Census Council (EBCC)
European Butterfly Indicator for Grassland species
provided by Dutch Butterfly Conservation
Biodiversity (Primary topic)
Typology: Descriptive indicator (Type A - What is happening to the environment and to humans?)
- SEBI 001
Contacts and ownership
EEA Contact InfoKatarzyna Biala
- European Bird Census Council (EBCC)
- Royal Society for the Protection of Birds
- Butterfly Conservation Europe (BCE)
- Statistics Netherlands
- European Environment Agency (EEA)
EEA Management Plan2010 (note: EEA internal system)
Frequency of updates
