Figure

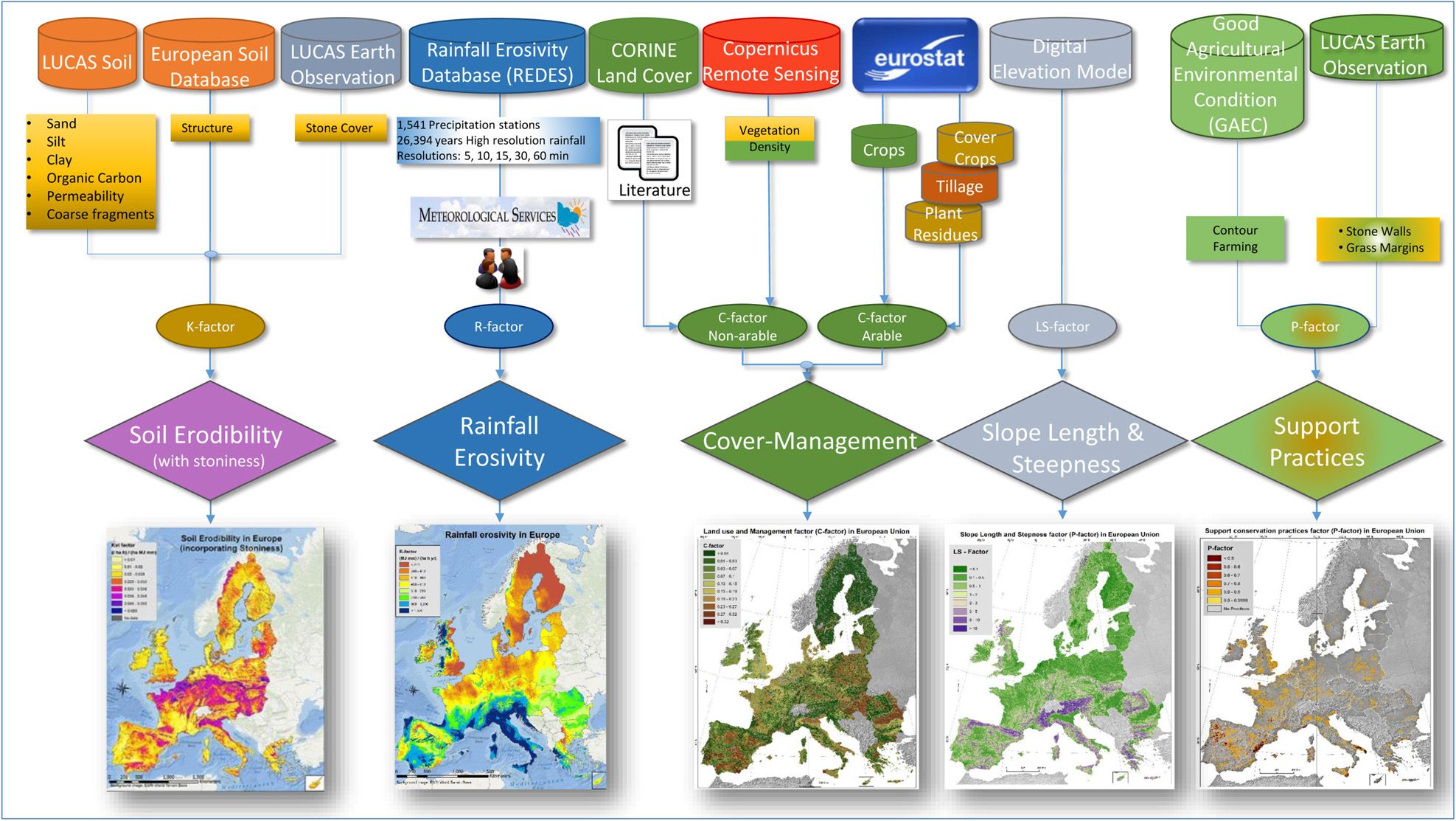

RUSLE soil erosion model structure

Figure Created 25 Oct 2016 Last modified 28 Mar 2022

1 min read

Topics: Climate change mitigation Soil Land use

The RUSLE is an empirical model that calculates long-term average annual soil loss due to sheet and rill erosion. The model considers six main factors controlling soil erosion: the erosivity of the eroding agents (water), the erodibility of the soil (including stoniness), the slope length and slope steepness of the land, the land cover and management (or human practices designed to control erosion).

https://www.eea.europa.eu/data-and-maps/figures/rusle-soil-erosion-model-structure/rusle-soil-erosion-model-structure/image_large

Download

Metadata

Rights:: EEA standard re-use policy: unless otherwise indicated, re-use of content on the EEA website for commercial or non-commercial purposes is permitted free of charge, provided that the source is acknowledged (https://www.eea.europa.eu/legal/copyright). Copyright holder: Joint Research Centre (JRC).
Owners:: Joint Research Centre (JRC)
Figure type:: Graph

Additional information

The soil erosion indicator is comprised of two sub-indicators. The first one is a cell-based map that estimates the rate of soil erosion by water in tonnes per hectare per year for cells of 100 by 100 m for the EU. The second one is a cell-based map that estimates the wind erosion rates in tonnes per hectare per year for cells of c. 1 by 1 km for EU Member States. Both indicators are predicted estimates rather than actual values.
