Emissions of acidifying substances (CSI 001/APE 007) - Assessment published Oct 2010

Indicator Assessment Created 21 Sep 2010 Published 25 Oct 2010 Last modified 04 Mar 2015, 11:50 AM

Generic metadata

Topics:

Air pollution Air pollution (Primary topic)

Agriculture Agriculture

Industry Industry

Tags:
soer2010 | csi | nh3 | so2 | nox | air emissions | nitrogen | sox | air pollution indicators | air quality | acidification | ammonia | pollution
DPSIR: Pressure
Typology: Performance indicator (Type B - Does it matter?)
Indicator codes
  • CSI 001
  • APE 007
Dynamic
Temporal coverage:
1990-2010
Geographic coverage:
Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey, United Kingdom

Contents


Indicator definition

  • The indicator tracks trends since 1990 in anthropogenic emissions of the acidifying pollutants nitrogen oxides (NOX) , ammonia (NH3), and sulphur oxides (SOX as SO2).
  • The indicator also provides information on emissions by sectors: Energy production and distribution; Energy use in industry;, Industrial processes; Road transport; Non-road transport; Commercial, institutional and households; Solvent and product use; Agriculture; Waste; Other.
  • Geographical coverage: EEA-32. The EEA-32 country grouping includes countries of the EU-27 (Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, and the United Kingdom) EFTA-4 (Iceland, Liechtenstein, Switzerland and Norway) and Turkey.
  • Temporal coverage: 1990-2010.

Units

ktonnes (1000 tonnes)


Key policy question: What progress is being made in reducing emissions of acidifying pollutants across Europe?

Key messages

  • Emissions of acidifying pollutants (nitrogen oxides (NOX), sulphur oxides (SO2) and ammonia (NH3) have decreased significantly in most of the individual EEA member countries between 1990 and 2008.
  • Emissions of SO2 have decreased by 74 %, NOX by 34 % and NH3 emissions by 24 % since 1990.
  • The EU-27 is on track to meet its overall target to reduce emissions of SO2 and NH3 as specified by the EU's NEC Directive (NECD). However a large number of individual Member States, and the EU as a whole, anticipate missing the 2010 emission ceilings set for NOX in the NECD,
  • Of the three non-EU countries having emission ceilings set under the UNECE/CLRTAP Gothenburg protocol (Liechtenstein, Norway and Switzerland), both Liechtenstein and Norway also reported NOX emissions in 2008 that were substantially higher than their respective 2010 ceilings.

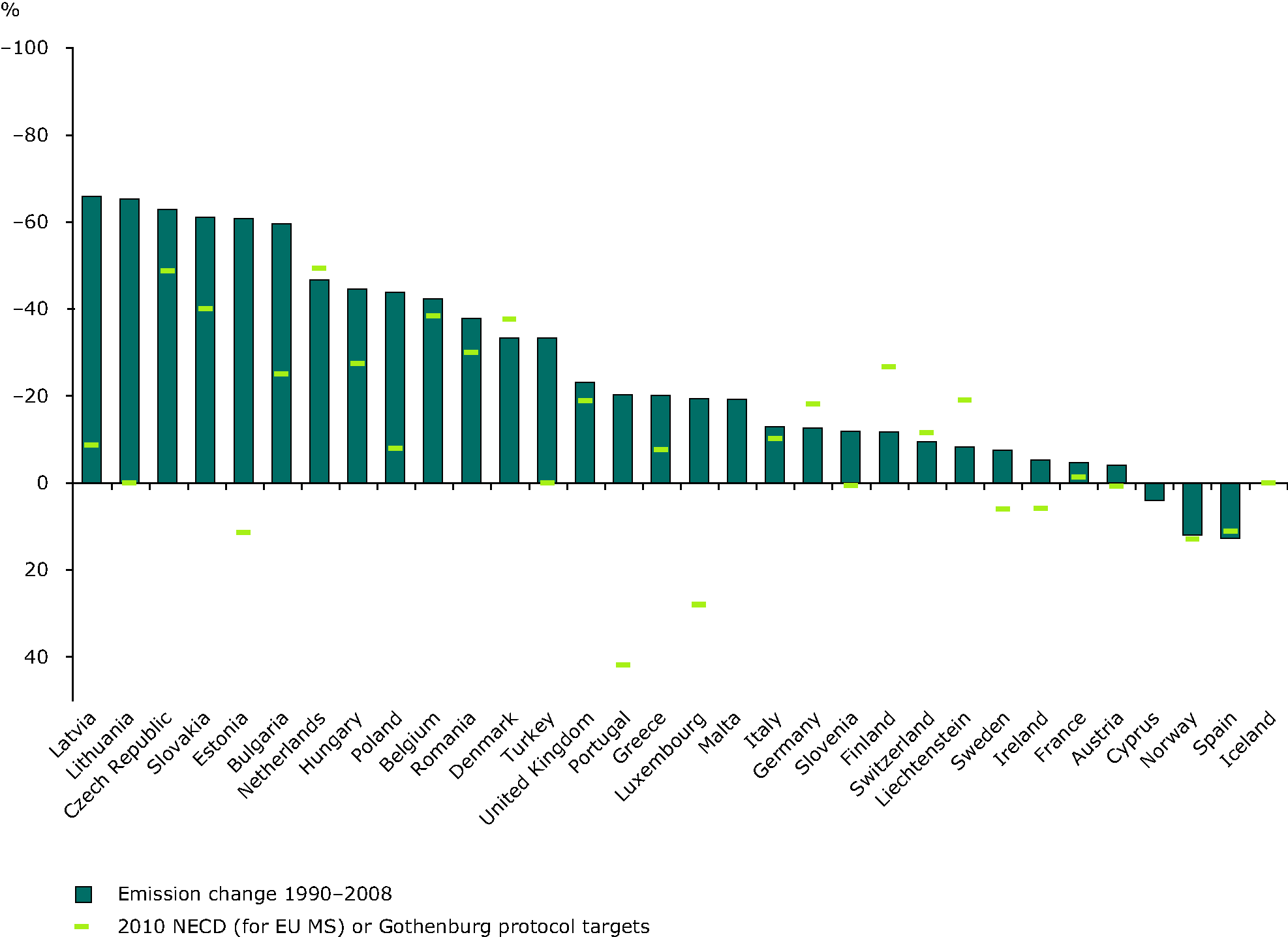

Change in emissions of sulphur dioxide compared with the 2010 NECD and Gothenburg protocol targets (EEA member countries)

Note: The reported change in sulphur dioxide emissions (SO2) for each country, 1990-2008, in comparison with the 2010 NECD and Gothenburg protocol targets.

Data source:
Downloads and more info

Change in emissions of nitrogen oxides compared with the 2010 NECD and Gothenburg protocol targets (EEA member countries)

Note: The reported change in nitrogen oxide emissions (NOx) for each country, 1990-2008, in comparison with the 2010 NECD and Gothenburg protocol targets.

Data source:
Downloads and more info

Change in emissions of ammonia compared with the 2010 NECD and Gothenburg protocol targets (EEA member countries)

Note: The reported change in ammonia (NH3) emissions for each country, 1990-2008 in comparison with the 2010 NECD and Gothenburg protocol targets.

Data source:
Downloads and more info

Key assessment

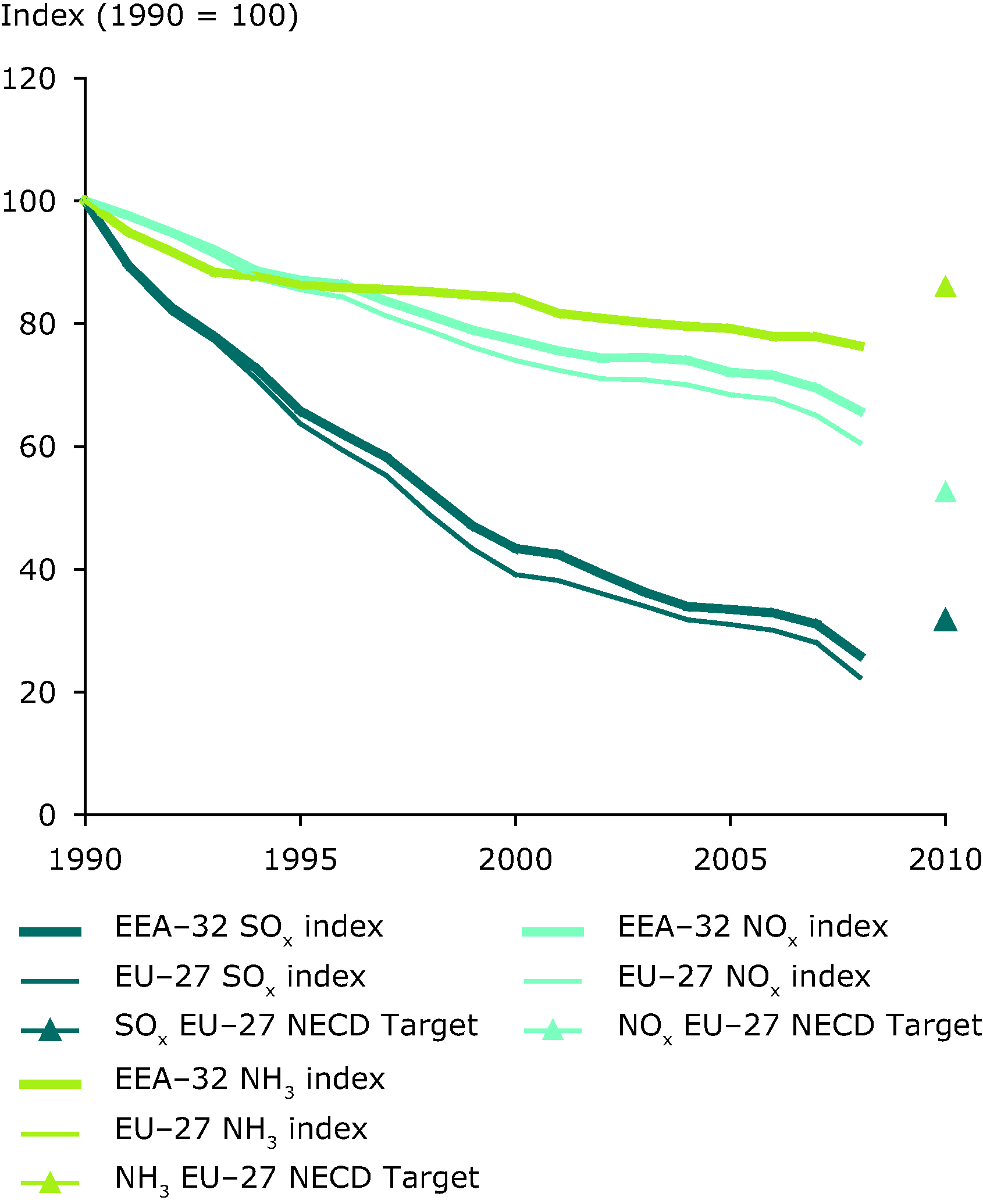

In the EEA-32 region, emissions of acidifying pollutants have decreased between 1990 and 2008 (Figure 1). Within most countries, emissions of acidifying pollutants have also decreased significantly (Figure 2). Details of these reductions are provided in the separate indicator factsheets for SO2, NOX and NH3, together with assessments of the progress being made by countries towards meeting their respective 2010 emission ceiling limits.

The reduction in total acidifying emissions across the EEA-32 has occurred mainly as a result of decreased SO2 emissions - since 1990 these have decreased by 74% (Figure 1). Emissions for the other two acidifying pollutants have also decreased since 1990, although not to the same extent. Key reasons behind the observed reductions in emissions are provided in the 'Specific assessment' section below.

The global recession that commenced mid-2008 has contributed to the emission reduction of NOx and SO2 emissions between 2007 and 2008. For example, emissions of SO2 and NOX in the EEA-32 have fallen by16% and 5% respectively between 2007 and 2008, a significantly greater reduction than in the preceding years.

Further details concerning emissions of the individual acidifying pollutants in individual EEA-32 member countries, may be found in the following indicator fact sheets:

Emission trends of ammonia (NH3)

Emission trends of nitrogen oxides (NOX)

Emission trends of sulphur dioxide (SO2).

The Gothenburg Protocol under the 1979 Convention on Long-range Transboundary Air Pollution (LRTAP Convention) and the EU Directive on National Emission Ceilings (NECD) (2001/81/EC) both set emission ceilings for the acidifying pollutants that countries must met by 2010. The NECD and Gothenburg protocol are both currently being reviewed. The revision of the NECD is part of the implementation of the Thematic Strategy on Air Pollution, but a proposal for a revised directive is presently on hold until 2013. A proposal to amend the Gothenburg protocol is presently under preparation and is expected to propose emission ceilings to be met by 2020 for the four already regulated substances (NOX, NMVOCs, SO2 and NH3) and in addition for primary emissions of PM2.5.

Specific policy question: How do different sectors and processes contribute to emissions of acidifying pollutants?

Contributions by sector for emissions of acidifying pollutants (EEA member countries)

Note: The contribution made by different sectors to emissions of acidifying pollutants

Data source:
Downloads and more info

Contribution to total change in ammonia emissions for each sector (EEA member countries)

Note: The contribution made by each sector to the total change in ammonia (NH3) emissions between 1990 and 2008.

Data source:
Downloads and more info

Change in sulphur dioxide emissions for each sector between 1990 and 2008 (EEA member countries)

Note: Percentage change in sulphur dioxide (SO2) emissions for each sector between 1990 and 2008.

Data source:
Downloads and more info

Change in nitrogen oxides emissions for each sector between 1990 and 2008 (EEA member countries)

Note: Percentage change in nitrogen oxide (NOx) emissions for each sector between 1990 and 2008.

Data source:
Downloads and more info

Change in ammonia emissions for each sector between 1990 and 2008 (EEA member countries)

Note: Percentage change in ammonia (NH3) emissions for each sector between 1990 and 2008.

Data source:
Downloads and more info

Contribution to total change in sulphur dioxide emissions for each sector (EEA member countries)

Note: The contribution made by each sector to the total change in sulphur dioxide (SO2) emissions between 1990 and 2008.

Data source:
Downloads and more info

Contribution to total change in nitrogen oxides emissions for each sector (EEA member countries)

Note: The contribution made by each sector to the total change in nitrogen oxide (NOx) emissions between 1990 and 2008.

Data source:
Downloads and more info

Specific assessment

In 2008 the most significant emission sources of each acidifying pollutant in the EEA-32 region were:

  • 'Agriculture' (contributing 94.2% of ammonia emissions),
  • 'Road Transport' (39.6% of nitrogen oxide emissions) and
  • 'Energy Production and Distribution (68.7% of sulphur oxide emissions) (Figure 4).

These same sectors have also each contributed the most to the overall total reduction of the respective pollutants since 1990. Factors that have contributed to the reduction in these sectors include:

  • for SO2, a) the impact of European Community directives relating to the sulphur content of certain liquid fuels, and b) fuel switching from high-sulphur solid (e.g. coal) and liquid (e.g. heavy fuel oil) fuels to low sulphur fuels (such as natural gas) for power and heat production purposes within the 'energy industries', industry and domestic sectors;
  • for NOx, the introduction of flue-gas abatement techniques (e.g. flue gas desulphurisation, NOX scrubbers and selective (SCR) and non-selective (SNCR) catalytic reduction) and introduction of combustion modification technologies (such as use of low NOX burners) and
  • for NH3, a reduction in livestock numbers in the agricultural sector (especially cattle) since 1990, changes in the handling and management of organic manures and from the decreased use of nitrogenous fertilisers.

Data sources

Policy context and targets

Context description

Within the European Union, the National Emission Ceilings Directive (NEC Directive) imposes emission ceilings (or limits) for emissions of the acidifying pollutants nitrogen oxides, sulphur dioxide and ammonia that harm human health and the environment (the NEC Directive also sets emissions ceilings for a fourth pollutant - non-methane volatile organic compounds).

Other key EU legislation is targeted at reducing emissions of air pollutants from specific sources, for example:

  • transport;
  • industrial facilities and other stationary sources.

Internationally, the issue of air pollution emissions is also being addressed by the UNECE Convention on Long-range Transboundary Air Pollution (the LRTAP Convention) and its protocols. A key objective of the protocol is to regulate emissions on a regional basis within Europe and to protect eco-systems from transboundary pollution by setting emission reduction ceilings to be reached by 2010 for the same 4 pollutants as addressed in the NECD (i.e. SO2, NOX, NH3 and NMVOCs). Overall for the EU Member States, the ceilings set within the Gothenburg protocol are generally either slightly less strict or the same as the emission ceilings specified in the NECD.

Targets

Emissions of SO2, NOX and NH3 are covered by the EU National Emission Ceilings Directive (NECD) (2001/81/EC) and the Gothenburg protocol under the United Nations Convention on Long-Range Transboundary Air Pollution (LRTAP Convention) (UNECE 1999). The NECD generally involves slightly stricter emission reduction targets than the Gothenburg Protocol for EU-15 Member States for 2010.

Table: 2010 Targets under the NEC Directive and the Gothenburg Protocol, in kt

2010 NECD ceilings

2010 CLRTAP Gothenburg Protocol ceilings



NOX

SOX

NH3

NOX

SOX

NH3

Austria 103 39 66 107 39 66
Belgium 176 99 74 181 106 74
Bulgaria 247 836 108 266 856 108
Cyprus 23 39 9
Czech Republic 286 265 80 286 283 101
Denmark 127 55 69 127 55 69
Estonia 60 100 29
Finland 170 110 31 170 116 31
France 810 375 780 860 400 780
Germany 1051 520 550 1081 550 550
Greece 344 523 73 344 546 73
Hungary 198 500 90 198 550 90
Iceland*
Ireland 65 42 116 65 42 116
Italy 990 475 419 1000 500 419
Latvia 61 101 44 84 107 44
Liechtenstein 0.37 0.11 0.15
Lithuania 110 145 84 110 145 84
Luxembourg 11 4 7 11 4 7
Malta 8 9 3
Netherlands 260 50 128 266 50 128
Norway 156 22 23
Poland 879 1397 468 879 1397 468
Portugal 250 160 90 260 170 108
Romania 437 918 210 437 918 210
Slovakia 130 110 39 130 110 39
Slovenia 45 27 20 45 27 20
Spain 847 746 353 847 774 353
Switzerland 79 26 63
Sweden 148 67 57 148 67 57
Turkey*
United Kingdom 1167 585 297 1181 625 297



* Iceland and Turkey do not have a ceiling under either the NEC Directive or the Gothenburg protocol.

Related policy documents

  • Directive 2001/81/EC, national emission ceilings
    Directive 2001/81/EC, on nation al emissions ceilings (NECD) for certain atmospheric pollutants. Emission reduction targets for the new EU10 Member States have been specified in the Treaty of Accession to the European Union 2003  [The Treaty of Accession 2003 of the Czech Republic, Estonia, Cyprus, Latvia, Lithuania, Hungary, Malta, Poland, Slovenia and Slovakia. AA2003/ACT/Annex II/en 2072] in order that they can comply with the NECD.
  • UNECE Convention on Long-range Transboundary Air Pollution
    UNECE Convention on Long-range Transboundary Air Pollution.

Methodology

Methodology for indicator calculation

This indicator is based on officially reported national total and sectoral emissions to EEA and UNECE/EMEP (United Nations Economic Commission for Europe/Co-operative programme for monitoring and evaluation of the long-range transmission of air pollutants in Europe) Convention on Long-range Transboundary Air Pollution (LRTAP Convention), submission 2011. For the EU-27 Member States, the data used is consistent with the emissions data reported by the EU in its annual submission to the LRTAP Convention.

Recommended methodologies for emission inventory estimation are compiled in the EMEP/EEA Air Pollutant Emission Inventory Guidebook, (EMEP/EEA, 2009). Base data are available from the EEA Data Service (http://dataservice.eea.europa.eu/dataservice/metadetails.asp?id=1096) and the EMEP web site (http://www.ceip.at/). Where necessary, gaps in reported data are filled by ETC/ACC using simple interpolation techniques (see below). The final gap-filled data used in this indicator are available from the EEA Data Service (http://dataservice.eea.europa.eu/PivotApp/pivot.aspx?pivotid=478).

Base data, reported in the UNECE/EMEP Nomenclature for Reporting (NFR) sector format are aggregated into the following EEA sector codes to obtain a consistent reporting format across all countries and pollutants:

  • Energy production and distribution: emissions from public heat and electricity generation, oil refining,  production of solid fuels, extraction and distribution of solid fossil fuels and geothermal energy;
  • Energy use in industry: emissions from combustion processes used in the manufacturing industry including boilers, gas turbines and stationary engines;
  • Industrial processes: emissions derived from non-combustion related processes such as the production of minerals, chemicals and metal production;
  • Road transport: light and heavy duty vehicles, passenger cars and motorcycles;
  • Non-road transport: railways, domestic shipping, certain aircraft movements, and non-road mobile machinery used in agriculture & forestry;
  • Commercial, institutional and households: emissions principally occurring from fuel combustion in the services and household sectors;
  • Solvent and product use: non-combustion related emissions mainly in the services and households sectors including activities such as paint application, dry-cleaning and other use of solvents;
  • Agriculture: manure management, fertiliser application, field-burning of agricultural wastes
  • Waste: incineration, waste-water management;
  • Other: emissions included in national total for entire territory not allocated to any other sector



The following table shows the conversion of Nomenclature for Reporting (NFR) sector codes used for reporting by countries into EEA sector codes:

EEA classification

Non-GHGs (NFR)



National totals

National total



Energy production and distribution

1A1, 1A3e, 1B



Energy use in industry

1A2



Road transport

1A3b



Non-road transport (non-road mobile machinery)

1A3 (exl 1A3b)



Industrial processes

2



Solvent and product use

3

Agriculture

4



Waste

6



Commercial, institutional and households

1A4ai, 1A4aii, 1A4bi, 1A4bii, 1A4ci, 1A4cii, 1A5a, 1A5b

Other

7




In addition to historic emissions, Figure 1 of the indicator factsheet also shows the latest 2010 projection estimates reported by the EU-27 Member States under the NEC Directive. The "with measures" (WM) projections reported by Member States take into account currently implemented and adopted policies and measures. Where countries have instead reported "business as usual" or "current legislation" projections, it is assumed for comparison purposes that these are equivalent to a WM projection. The "with additional measures" projections reported by Member States take into account additional future planned policies and measures but which are not yet implemented.

Methodology for gap filling

An improved gap-filling methodology was implemented in 2010 that enables a complete time series trend for the main air pollutants (eg NOX, SOX, NMVOC, NH3 and CO) to be compiled. In cases where countries did not report emissions for any year, it meant that gap-filling could not be applied. For these pollutants, therefore, the aggregated data are not yet complete and are likely to underestimate true emissions. Further methodological details of the gap-filling procedure are provided in section 1.4.2 Data gaps and gap-filling of the European Union emission inventory report 1990–2009 under the UNECE Convention on Long-range Transboundary Air Pollution (LRTAP).

Methodology references

No methodology references available.

Uncertainties

Methodology uncertainty

The use of gap-filling for when countries have not reported emissions for one of more years can potentially lead to artificial trends, but it is considered unavoidable if a comprehensive and comparable set of emissions data for European countries is required for policy analysis purposes.

Data sets uncertainty

NOX emission estimates in Europe are thought to have an uncertainty of about ±20% (EMEP, 2010), as the NOX emitted comes both from the fuel burnt and the combustion air and so cannot be estimated accurately from fuel nitrogen alone. However, because of the need for interpolation to account for missing data, the complete dataset used will have higher uncertainty. The trend is likely to be more accurate than the individual absolute annual values - the annual values are not independent of each other.

Overall scoring: (1-3, 1=no major problems, 3=major reservations)

  • Relevancy: 1
  • Accuracy: 2
  • Comparability over time: 2
  • Comparability over space: 2



SOX emission estimates in Europe are thought to have an uncertainty of about +/-10% as the sulphur comes from the fuel burnt and therefore can be accurately estimated. However, because of the need for interpolation to account for missing data, the complete dataset used will have higher uncertainty. EMEP has compared modelled and measured concentrations throughout Europe (EMEP 2010). From these studies, differences in the annual averages have been estimated to be +/-30%, which is consistent with an inventory uncertainty of +/-10% (there are also uncertainties in the measurements and especially the modelling). The trend is likely to be much more accurate than individual absolute values

Overall scoring: (1-3, 1=no major problems, 3=major reservations)

  • Relevancy: 1
  • Accuracy: 2
  • Comparability over time: 2
  • Comparability over space: 2



NH3 emission estimates in Europe are more uncertain than those for NOX, SOX and NMVOCs due largely to the diverse nature of major agricultural sources. It is estimated that they are around +/- 30% (EMEP, 2009). The trend is likely to be more accurate than the individual absolute annual values - the annual values are not independent of each other.

Overall scoring: (1-3, 1=no major problems, 3=major reservations)

  • Relevancy: 1
  • Accuracy: 2
  • Comparability over time: 2
  • Comparability over space: 2

Rationale uncertainty

This indicator is regularly updated by EEA and is used in state of the environment assessments. The uncertainties related to methodology and data sets are therefore of importance.

More information about this indicator

See this indicator specification for more details.

Contacts and ownership

EEA Contact Info

Martin Adams

Ownership

EEA Management Plan

2010 1.1.2 (note: EEA internal system)

Dates

Frequency of updates

Updates are scheduled once per year
