Figure

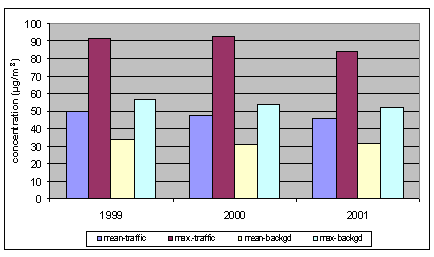

Mean and maximum values of annual averages of NO2 for traffic and urban background stations

Figure Created 12 Nov 2009 Published 12 Nov 2009 Last modified 29 Nov 2012

1 min read

Station pairs from capital cities were preferred, but when not available the next largest city for which data were available was chosen

https://www.eea.europa.eu/data-and-maps/figures/mean-and-maximum-values-of-annual-averages-of-no2-for-traffic-and-urban-background-stations/figure1.gif/image_large

Download

Metadata

Rights:: EEA standard re-use policy: unless otherwise indicated, re-use of content on the EEA website for commercial or non-commercial purposes is permitted free of charge, provided that the source is acknowledged (https://www.eea.europa.eu/legal/copyright).
Figure type:: Graph

Additional information

Since the available data (stations) vary from year to year (see Tables 2 and 3) only the years 1999-2001 were chosen in order to ensure a consistent dataset across these years. Meteorological data are not available, so meteorologically induced changes cannot be analysed. The traffic stations were selected according to their yearly data availability and their completeness as regards hourly data availability. For certain years and stations the data availability was low, however these were used as no alternative was available. See Table 1 for details.
